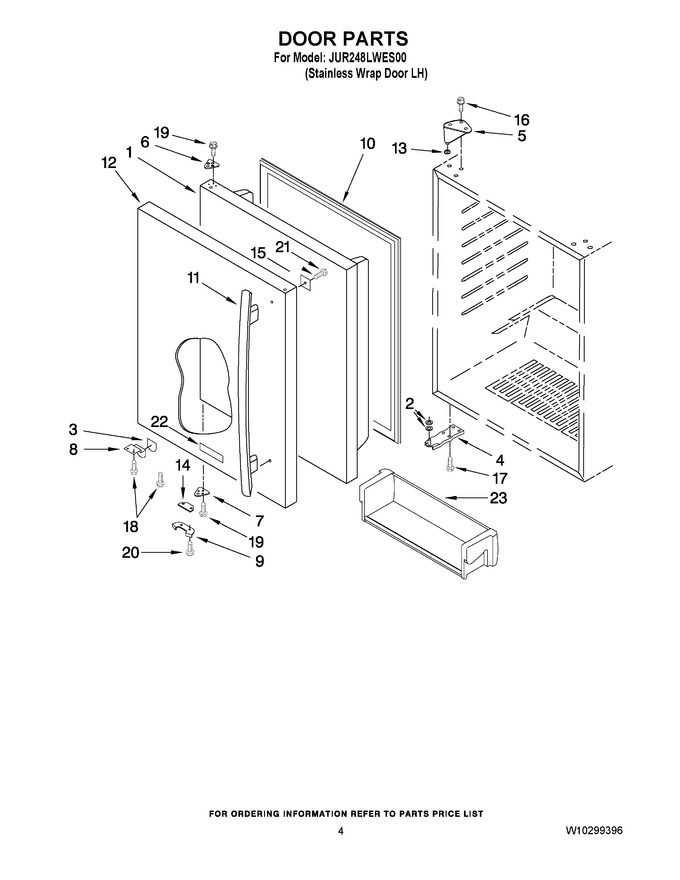

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175943		Door Assembly		Appelez-nous	-
2	W11241702		Washer/bottom   (Replaces: W10162992)				$ 14.27
3	W10163191		Gasket, Push Plate				$ 14.85
4	4344787		Hinge, Bottom				$ 217.36
5	4344754		Hinge, Top				$ 89.01
6	4344755		Spacer, Top Hinge				$ 20.03
7	4344756		Spacer, Bottom Hinge				$ 20.70
8	4344757		Actuator, Switch				$ 154.08
9	4344758		Door Stop		Appelez-nous	-
10	WPW10238068		Door Gasket   (Replaces: 4344852)				$ 347.01
11	W10299087		Handle, Door				$ 199.28
12	W10299466		Door Skin		Appelez-nous	-
13	4344760		Washer				$ 15.91
14	4344788		Spacer, Door				$ 171.37
15	W10299088		Plate		Appelez-nous	-
16	4344796		Screw				$ 16.82
17	W10243104		Screw, Lower Hinge (quantity 3)		Appelez-nous	-
17	4344906		Screw, Lower Hinge (quantity 1)		Appelez-nous	-
18	W10837731		Screw   (Replaces: W10204865)				$ 8.30
19	W10243123		Screw				$ 16.82
20	4344801		Screw				$ 16.82
21	W10299089		Screw, Handle		Appelez-nous	-
22	WPW10214168		Name Plate   (Replaces: W10292471)				$ 85.95
23	W10175958		Door Bin		Appelez-nous	-
NI	8171420		Cleaner, Stainless Steel (12 Oz)		Appelez-nous	-
