SELECT A DIAGRAM

01 - Cabinet Parts


02 - Shelf Parts

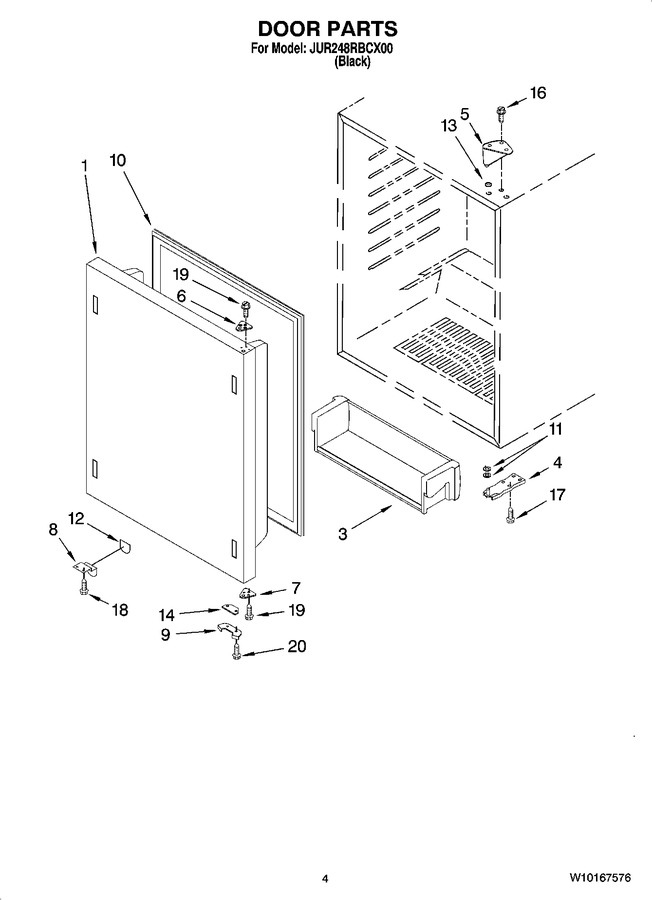

03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167688		Door Assembly		Appelez-nous	-
3	W10175958		Door Bin		Appelez-nous	-
4	W10239363		Hinge, Bottom   (Replaces: 4344753)				$ 80.61
5	4344754		Hinge, Top				$ 89.01
6	4344804		Spacer, Top Hinge				$ 20.03
7	4344798		Spacer, Bottom Hinge				$ 20.03
8	4344757		Actuator, Switch				$ 154.08
9	4344802		Door Stop   (Replaces: W10163283)				$ 21.98
10	WPW10238068		Door Gasket   (Replaces: 4344852)				$ 347.01
11	W11241702		Washer   (Replaces: W10162992)				$ 14.27
12	W10163191		Gasket, Push Plate				$ 14.85
13	4344760		Washer				$ 15.91
14	4344803		Spacer, Door				$ 175.49
16	4344796		Screw				$ 16.82
17	4344797		Screw, Lower Hinge (quantity 3)		Appelez-nous	-
17	4344906		Screw, Lower Hinge (quantity 1)		Appelez-nous	-
18	4344827		Screw		Appelez-nous	-
19	W10243123		Screw   (Replaces: W10163072)				$ 16.82
20	4344801		Screw				$ 16.82
NI	W10235660		Hous-cntrl				$ 275.61
NI	4344818		Installation Kit, Door Panel				$ 129.52

    View Diagram in Separate Window       Print Part List
