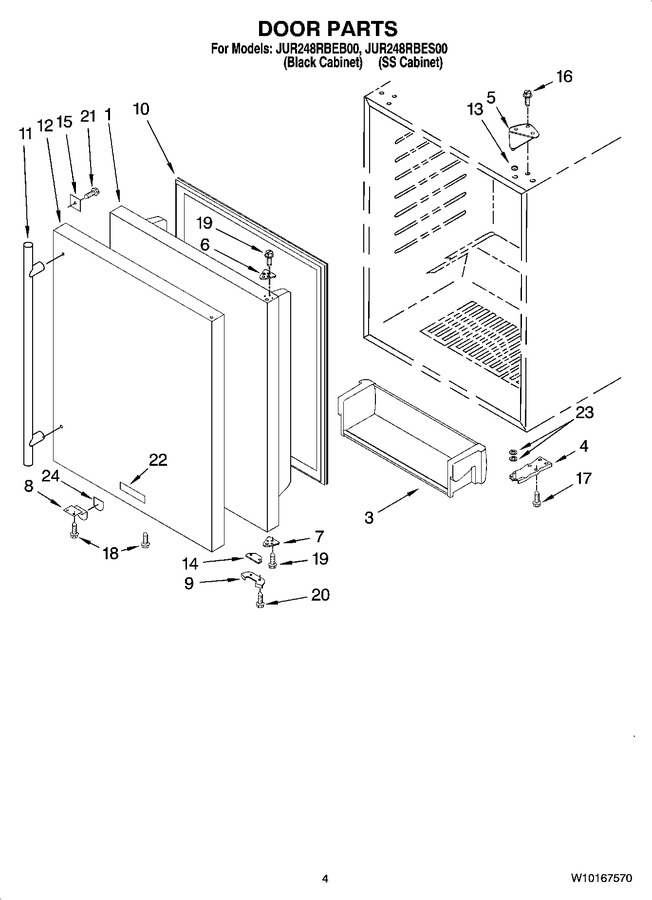

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175492		Door Assembly		Appelez-nous	-
3	W10175958		Door Bin		Appelez-nous	-
4	W10239363		Hinge, Bottom (stainless Steel)   (Replaces: 4344753)				$ 80.61
4	W10163066		Hinge, Bottom (black)		Appelez-nous	-
5	W10162991		Hinge, Top (black)		Appelez-nous	-
5	4344754		Hinge, Top (stainless Steel)				$ 89.01
6	4344755		Spacer, Top Hinge				$ 20.03
7	4344756		Spacer, Bottom Hinge				$ 20.70
8	4344757		Actuator, Switch				$ 154.08
9	W10163074		Door Stop (black)		Appelez-nous	-
9	4344758		Door Stop (stainless Steel)		Appelez-nous	-
10	WPW10238068		Door Gasket   (Replaces: 4344852)				$ 347.01
11	W10163184		Handle, Door		Appelez-nous	-
12	W10175947		Door Skin (stainless Steel)		Appelez-nous	-
12	W10175956		Door Skin (black)		Appelez-nous	-
13	4344760		Washer				$ 15.91
14	4344788		Spacer, Door				$ 171.37
15	W10175960		Plate		Appelez-nous	-
16	W10162988		Screw (black)		Appelez-nous	-
16	4344796		Screw (stainless)				$ 16.82
17	4344797		Screw, Lower Hinge (quantity 3)		Appelez-nous	-
17	4344906		Screw, Lower Hinge (quantity 1)		Appelez-nous	-
18	4344827		Screw		Appelez-nous	-
19	4344800		Screw		Appelez-nous	-
20	4344801		Screw				$ 16.82
21	W10163183		Screw		Appelez-nous	-
22	W10163189		Nameplate		Appelez-nous	-
23	W11241702		Washer   (Replaces: W10162992)				$ 14.27
24	W10163191		Gasket, Push Plate				$ 14.85
NI	31462		Cleaner, Stainless Steel (10 Oz)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
