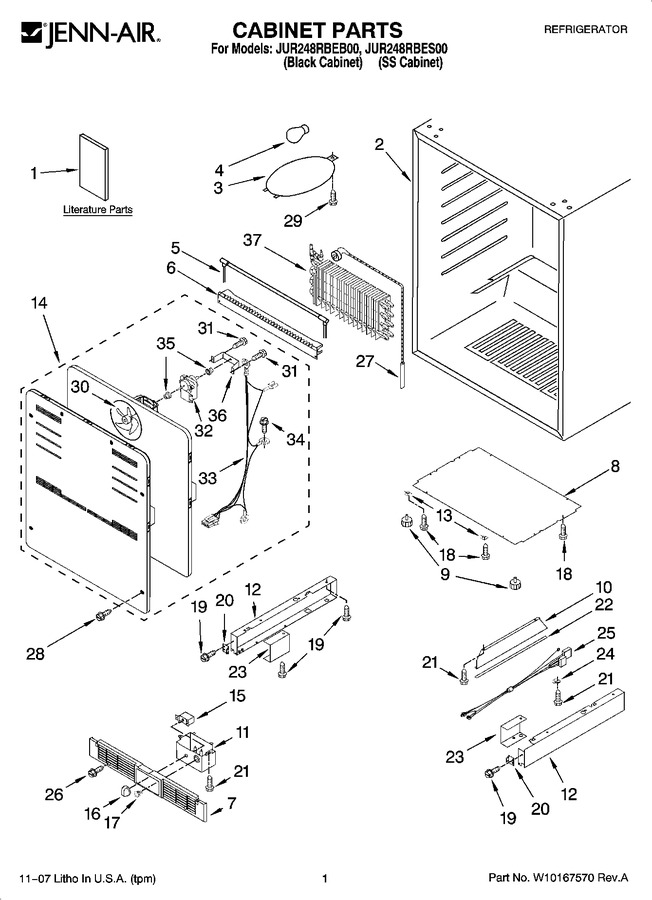

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167591		Energy Guide		Appelez-nous	-
1	2300278B		Use & Care Guide		Appelez-nous	-
1	4344902		Wiring Diagram		Appelez-nous	-
2	W10310989		Harns-wire		Appelez-nous	-
3	W10167586		Lens, Light		Appelez-nous	-
4	WP22002263		Bulb, Light   (Replaces: 4344740)			Immediately	$ 14.85
5	W11230119		Heater, Defrost   (Replaces: 4344746)				$ 145.69
6	4344747		Heat Shield				$ 78.49
7	4344761		Grille		Appelez-nous	-
8	4344762		Plate, Bottom		Appelez-nous	-
9	W11106296		Foot, Leveling   (Replaces: 4344763)				$ 19.03
10	4344764		Brace, Support		Appelez-nous	-
11	4344765		Control Box		Appelez-nous	-
12	4344769		Frame, Side (left Side)		Appelez-nous	-
12	4344770		Frame, Side (right Side)		Appelez-nous	-
13	4344771		Bracket, Grille				$ 104.76
14	W10167587		Evaporator Fan Assembly		Appelez-nous	-
15	W11176247		Thermostat   (Replaces: 4344766)				$ 235.27
16	WP3402573		Knob, Thermostat   (Replaces: 4344768)				$ 106.51
17	WP4344767		Switch, Plunger   (Replaces: 4344767)				$ 59.62
18	4344826		Screw				$ 16.70
19	4344797		Screw		Appelez-nous	-
20	4344819		Clip, Grille		Appelez-nous	-
21	4344825		Screw		Appelez-nous	-
22	4344823		Seal				$ 101.83
23	4344821		Frame, Support (right)		Appelez-nous	-
23	4344820		Frame, Support (left)		Appelez-nous	-
24	W11456069		Clip, Harness   (Replaces: 4344824)			Immediately	$ 22.40
25	4344822		Harness, Wire		Appelez-nous	-
26	4344827		Screw		Appelez-nous	-
27	4344792		Thermal Fuse				$ 119.25
28	4344793		Screw		Appelez-nous	-
29	4344791		Screw		Appelez-nous	-
30	4344783		Fan Blade		Appelez-nous	-
31	4344878		Screw		Appelez-nous	-
32	4344865		Evaporator Fan Motor		Appelez-nous	-
33	4344877		Harness, Wire		Appelez-nous	-
34	4344832		Screw, Ground		Appelez-nous	-
35	4344778		Grommet, Fan Motor		Appelez-nous	-
36	4344899		Bracket, Motor		Appelez-nous	-
