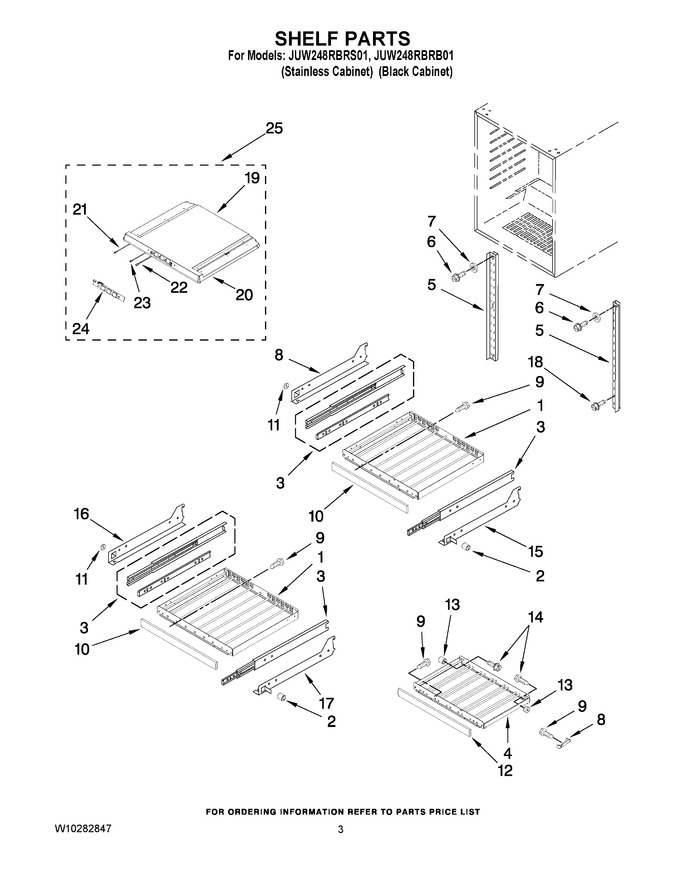

01 - Cabinet Parts


02 - Shelf Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10238032		Wine Rack Top & Middle		Appelez-nous	-
2	4344867		Rubber Support		Appelez-nous	-
3	W10238029		Rail Assembly				$ 166.80
4	W10187313		Wine Rack, Lower		Appelez-nous	-
5	4344842		Ladder, Shelf (left Side)		Appelez-nous	-
5	4344843		Ladder, Shelf (right Side)		Appelez-nous	-
6	4344794		Screw		Appelez-nous	-
7	4344795		Washer		Appelez-nous	-
8	W10239365		Shelf Support		Appelez-nous	-
9	4344851		Screw		Appelez-nous	-
10	W10239372		Trim, Top And Middle Racks		Appelez-nous	-
11	4344866		Rubber Support		Appelez-nous	-
12	4344884		Trim, Lower Rack		Appelez-nous	-
13	4344886		Support, Bumper (right)		Appelez-nous	-
13	4344885		Support, Bumper (left)		Appelez-nous	-
14	4344914		Screw (right)		Appelez-nous	-
14	4344915		Screw (left)		Appelez-nous	-
15	W10239366		Shelf Support		Appelez-nous	-
16	W10239369		Shelf Support		Appelez-nous	-
17	W10239370		Shelf Support		Appelez-nous	-
18	W10162986		Screw (w/washer)		Appelez-nous	-
19	W10238187		Top Cover		Appelez-nous	-
20	W10238184		Bottom Cover		Appelez-nous	-
21	W10238024		Transformer Cable		Appelez-nous	-
22	W10238026		Sensor Assy				$ 138.18
23	W10238025		Sensor Assy, Top				$ 131.24
24	WPW10238180		Pcb Display Board   (Replaces: W10238180)				$ 323.77
25	W10282166		Temperature Separator Assy		Appelez-nous	-
NI	W10239385		Support Spacer		Appelez-nous	-
NI	W10239384		Seal		Appelez-nous	-
NI	W10238189		Support		Appelez-nous	-
NI	W10238031		Led Spacer		Appelez-nous	-
NI	W10204809		Screw, Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
