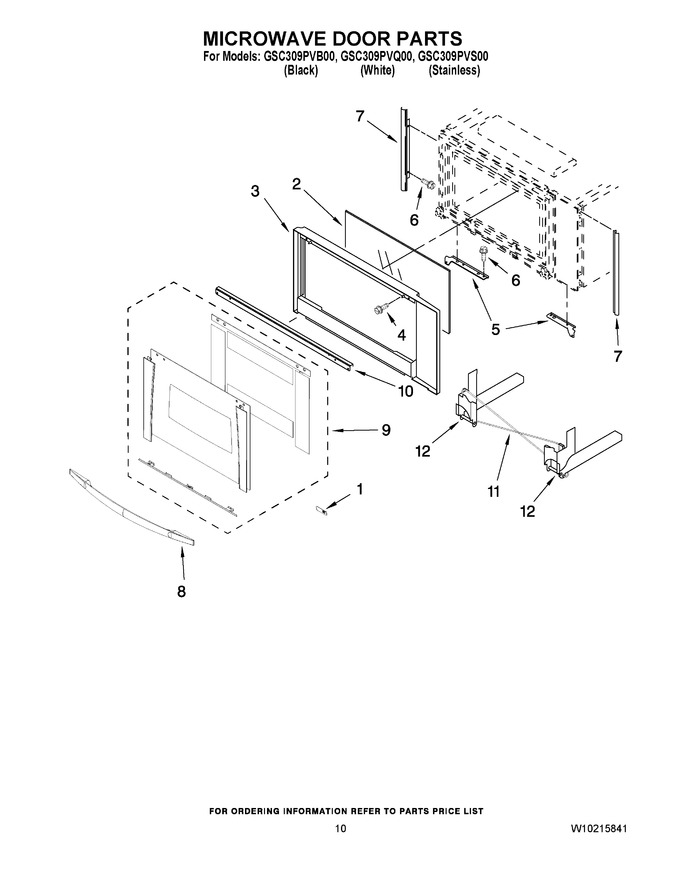

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175320 | Name Plate |
|
$ 41.71 | |||||
| 2 | 4448937 | Glass, Middle |
|
$ 66.02 | |||||
| 3 | WP8303556 | Frame, Door (Replaces: 8303556) |
|
$ 265.47 | |||||
| 4 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 7.60 | |||||
| 5 | 4449141 | Bracket, Mounting (right) |
|
$ 31.33 | |||||
| 5 | 4449142 | Bracket, Mounting (left) |
|
$ 52.12 | |||||
| 6 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.19 | ||||
| 7 | 4449086 | Filler, Side (left) |
|
$ 36.10 | |||||
| 7 | 4449083 | Filler, Side (right) |
|
$ 36.44 | |||||
| 8 | W10169803 | Handle, Door (white) |
|
$ 73.49 | |||||
| 8 | W10169798 | Handle, Door (stainless) |
|
$ 78.71 | |||||
| 8 | W10169801 | Handle, Door (black) |
|
$ 79.57 | |||||
| 9 | W10199429 | Glass, Outer (white) |
|
$ 156.78 | |||||
| 9 | W10401225 | Glass, Outer (stainless) (Replaces: W10176986) |
|
$ 321.60 | |||||
| 9 | W10199428 | Glass, Outer (black) |
|
$ 161.85 | |||||
| 10 | 4452331 | Bracket, Handle |
|
$ 48.67 | |||||
| 11 | 4375325 | Springs, Torsion (left) |
|
- | |||||
| 11 | WP4451009 | Springs, Torsion (right) (Replaces: 4451009) |
|
$ 133.82 | |||||
| 12 | WP4375324 | Hinge (left) (Replaces: 4375324) |
|
$ 88.22 | |||||
| 12 | WP4375323 | Hinge (right) (Replaces: 4375323) |
|
$ 88.55 |
