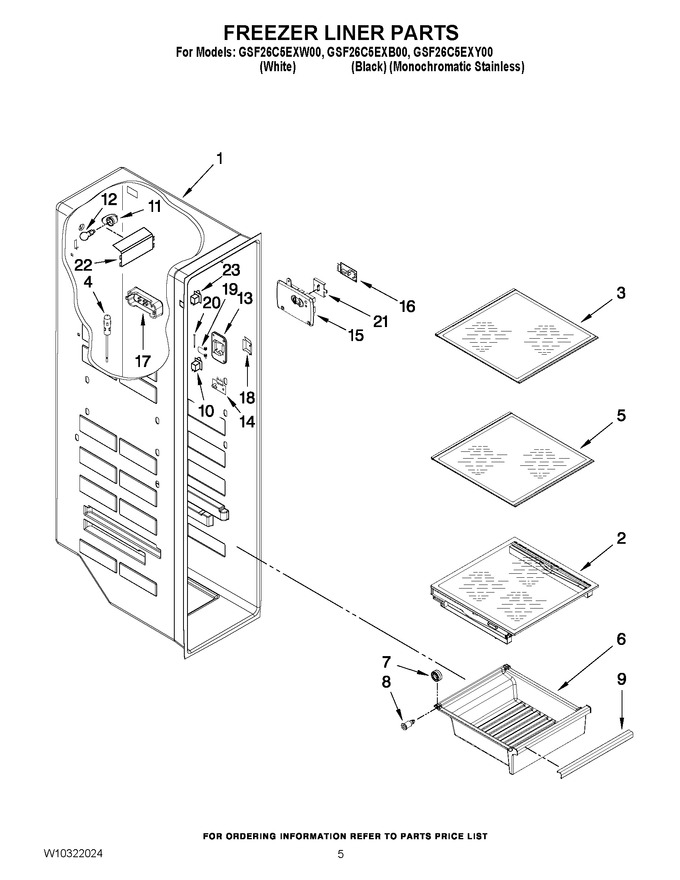

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WPW10269181 | Cover Assy (Replaces: W10269181) |
|
$ 254.26 | |||||
| 3 | W10256768 | Shelf, Glass Upper |
|
$ 80.97 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 32.00 | ||||
| 5 | W10261035 | Shelf, Glass Lower |
|
$ 81.49 | |||||
| 6 | WPW10260985 | Pan, Freezer (also Order 7, 8, & 9) (Replaces: W10260985) |
|
$ 149.42 | |||||
| 7 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 14.99 | ||||
| 8 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 34.80 | |||||
| 9 | W11236850 | Trim, Handle (Replaces: W10260986) |
|
- | |||||
| 10 | W11457217 | Switch, Rocker Arm Lower (Replaces: 1115373) |
|
$ 38.18 | |||||
| 11 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 12 | W11679940 | Light Bulb (Replaces: W10311505) |
|
Immediately | $ 11.30 | ||||
| 13 | W10258502 | Cover, Emitter |
|
$ 85.47 | |||||
| 14 | W10870822 | P.c. Board, Emitter (Replaces: W10180607) |
|
Immediately | $ 222.54 | ||||
| 15 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 42.38 | |||||
| 16 | W11813704 | P.c. Board, Receiver (Replaces: W10296530) |
|
Immediately | $ 313.30 | ||||
| 17 | WPW10425252 | Cover, Thermistor (Replaces: W10251510) |
|
Immediately | $ 84.17 | ||||
| 18 | WPW10258520 | Flipper (Replaces: W10258520) |
|
$ 75.86 | |||||
| 19 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 87.08 | |||||
| 20 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 17.76 | |||||
| 21 | W10258540 | Slide, Ice Maker Shut Off |
|
$ 10.62 | |||||
| 22 | WPW10269101 | Lens (Replaces: W10295030) |
|
$ 102.33 | |||||
| 23 | W11123943 | Rocker Arm Switch Upper (Replaces: 2149954) |
|
$ 34.91 |
