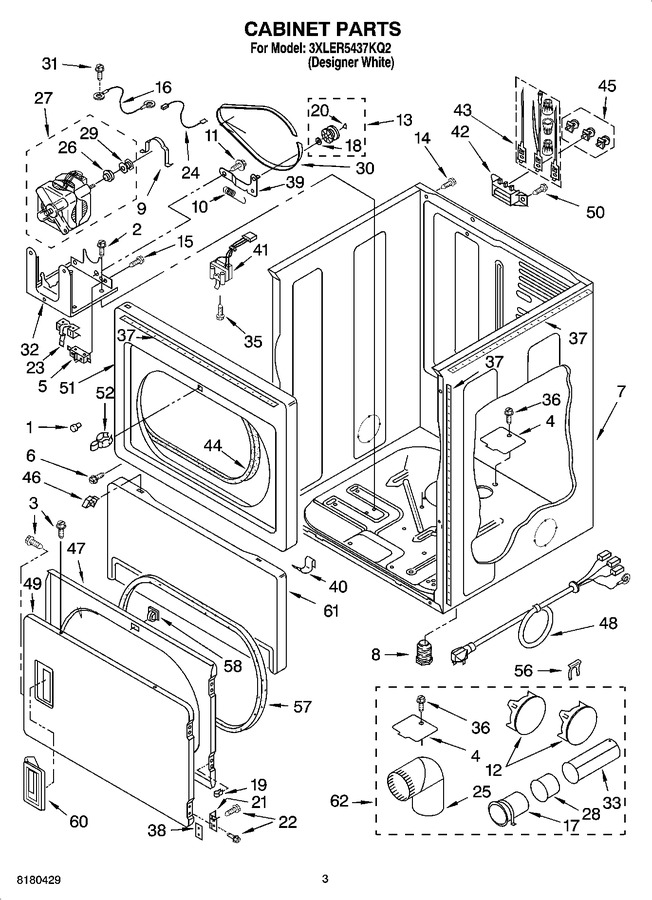

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 693152 | Bumper |
|
$ 10.96 | |||||
| 2 | W11808444 | Screw, 8-32 X 5/16 (Replaces: 98139) |
|
- | |||||
| 3 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 7.19 | |||||
| 4 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.96 | |||||
| 5 | WP8318457 | Switch, Broken Belt (Replaces: 8318457) |
|
$ 42.09 | |||||
| 6 | W10891954 | Screw, 8-18 X 3/8 (Replaces: 8281212) |
|
- | |||||
| 7 | W11417441 | Cabinet (Replaces: 8310656) |
|
$ 419.21 | |||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.02 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | W10850756 | Screw, 10-32 X 5/8 (Replaces: 697776) |
|
$ 7.76 | |||||
| 15 | 3400934 | Screw, 6-20 X 1 1/16 |
|
- | |||||
| 16 | 340025 | Wire, Ground |
|
- | |||||
| 17 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 3395532) |
|
$ 91.38 | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 7.96 | ||||
| 19 | 3389249 | Nut, Inner Door (4) |
|
- | |||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | W11175815 | Hinge & Pin Assembly (2) (Replaces: 3389247) |
|
$ 81.41 | |||||
| 22 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.57 | |||||
| 23 | WP8066120 | Lever, Snap Switch (Replaces: 8066120) |
|
Immediately | $ 33.11 | ||||
| 24 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 25 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 26.82 | |||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 27 | W10416573 | Motor, Assembly 50 Hz. (Replaces: 3404470) |
|
$ 238.86 | |||||
| 28 | WPW10331278 | Exhaust Pipe (short) (Replaces: 3395534) |
|
$ 78.95 | |||||
| 29 | 3402548 | Pulley 50 Hz. |
|
- | |||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | 3400097 | Screw, 10-24 X 3/8 |
|
- | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 133.59 | |||||
| 33 | WP8563749 | Exhaust Pipe (long) (Replaces: 3395535) |
|
$ 88.80 | |||||
| 35 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.70 | |||||
| 36 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 37 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 37.82 | |||||
| 38 | WP3390902 | Clip, Door Hinge (2) (Replaces: 3390902) |
|
$ 11.11 | |||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 42 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 23.02 | |||||
| 43 | 279318 | Terminal, Brass & Tinned (3) Includes Illus. 45 |
|
Immediately | $ 100.99 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 47.37 | ||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | 280083 | Door, Rear (Replaces: 3392563) |
|
$ 287.02 | |||||
| 48 | 3387258 | Cord, Power |
|
- | |||||
| 49 | W11663440 | Door, Front (Replaces: 3387872) |
|
$ 259.37 | |||||
| 50 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 51 | 8317373 | Upper Front Panel |
|
- | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 56 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.40 | ||||
| 57 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 130.60 | |||||
| 58 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 60 | 3389522 | Handle, Door |
|
$ 77.90 | |||||
| 61 | WP3406797 | Toe Panel (includes Illus. 1) (Replaces: 697215) |
|
$ 238.33 | |||||
| 62 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 | |||||
| 62 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 62 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 62 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 62 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 62 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| 62 | N/A | Accessory Parts |
|
- | |||||
| 62 | 4392067 | Kit, Dryer Repair |
|
Immediately | $ 62.25 | ||||
| 62 | 8212450A | Dry Rack (Replaces: 3406911) |
|
Immediately | $ 83.99 |
