SELECT A DIAGRAM

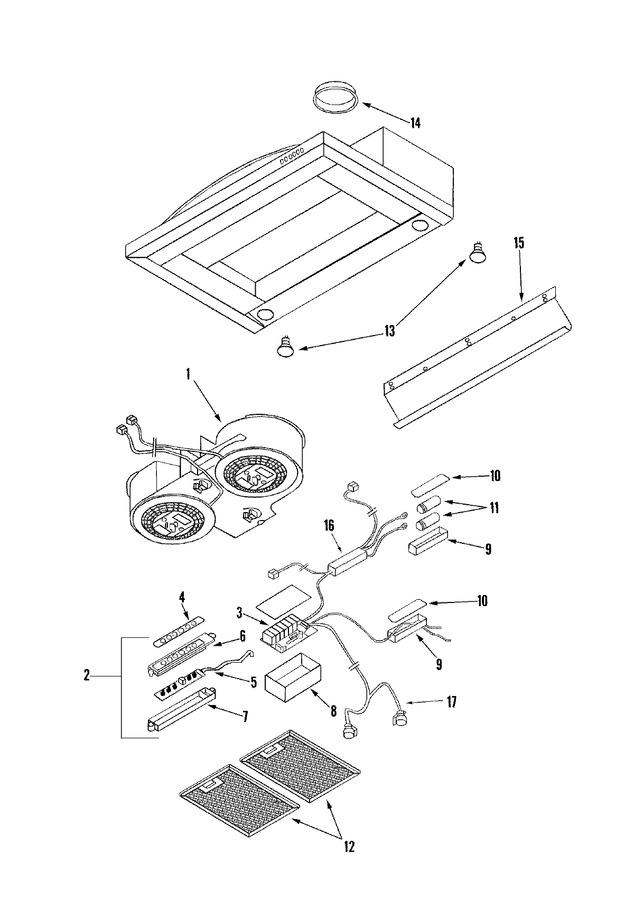

01 - Hood Components (complete)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49001294 | Motor Assembly | 10 |
|
- | ||||
| 2 | 49001295 | Switch Assembly | 10 |
|
- | ||||
| 3 | 49001296 | Control Board | 10 |
|
$ 302.56 | ||||
| 4 | 49001043 | Control (pearl) | 10 |
|
- | ||||
| 5 | 49001044 | Board, Control W/tc Display | 10 |
|
- | ||||
| 6 | 49001297 | Cover, Led/switch Board | 10 |
|
- | ||||
| 7 | 49001298 | Housing, Led/switch Board | 10 |
|
- | ||||
| 8 | 49001299 | Housing, Control Board | 10 |
|
- | ||||
| 9 | 49001300 | Electrical Box | 10 |
|
- | ||||
| 10 | 49001301 | Cover, Electrical Box | 10 |
|
- | ||||
| 11 | Y49001050 | Capacitor | 10 |
|
- | ||||
| 12 | 49001302 | Filter, Metal | 10 |
|
- | ||||
| 13 | 49001047 | Bulb, Halogen (120v 50w) | 10 |
|
$ 23.91 | ||||
| 14 | 49001303 | Starting Collar (5`` Round) | 10 |
|
- | ||||
| 15 | 49001307 | Bar, Utensil (36`` Stl) | 10 |
|
- | ||||
| 16 | 49001334 | Component Box | 10 |
|
- | ||||
| 17 | 49001333 | Light Socket | 10 |
|
- | ||||
| 18 | 49001310 | Kit, Hardware Install | 10 |
|
- | ||||
| 19 | 16023510 | Svc Man, Vent Hoods | 10 |
|
- | ||||
| 20 | 16023512 | Tech Sht, Vent Hoods | 10 |
|
- | ||||
| 21 | JFLTRC5836 | Filter, Carbon(ductless Qty-3) | 10 |
|
- |
