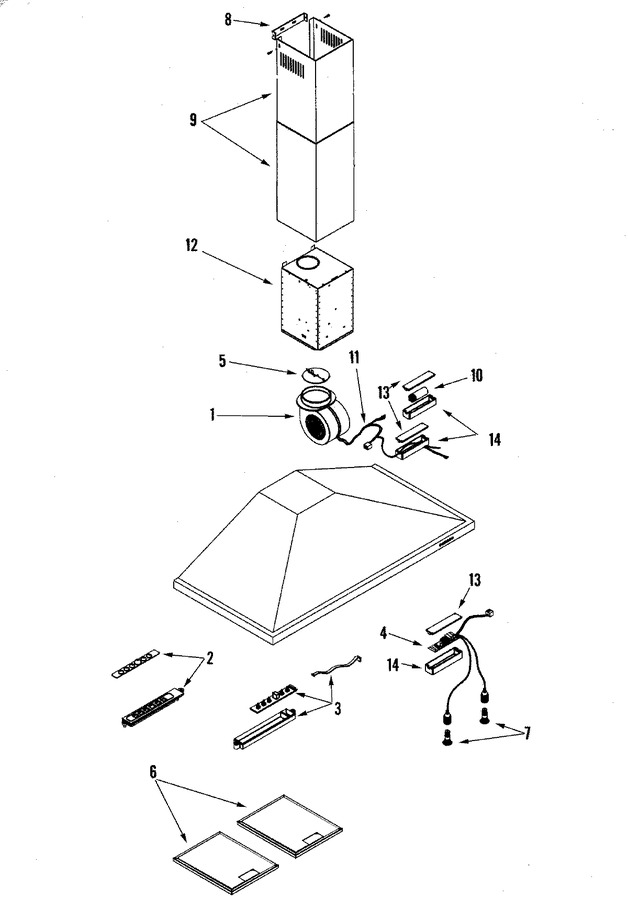

01 - Hood Components (complete)
02 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49001051 | Motor, Assembly Complete | 10 |
|
- | ||||
| 2 | 49001043 | Control (pearl) | 10 |
|
- | ||||
| 3 | 49001044 | Board, Control W/tc Display | 10 |
|
- | ||||
| 4 | 49001053 | Board, Electronic (127v 60hz) | 10 |
|
- | ||||
| 5 | 49001045 | Valve, Damper | 10 |
|
- | ||||
| 6 | 49001046 | Filter, Metal Mesh | 10 |
|
- | ||||
| 7 | 49001047 | Bulb, Halogen (120v 50w) | 10 |
|
$ 23.91 | ||||
| 8 | 49001175 | Kit, Mounting | 10 |
|
- | ||||
| 9 | 49001097 | Chimney Cover Assembly | 10 |
|
- | ||||
| 10 | Y49001050 | Capacitor | 10 |
|
- | ||||
| 11 | 49001166 | Harness, Wire (2 Sockets) | 10 |
|
- | ||||
| 12 | 49001096 | Sheet, Separator | 10 |
|
- | ||||
| 13 | 49001185 | Cover, Electrical Box | 10 |
|
- | ||||
| 14 | 49001186 | Box, Electrical | 10 |
|
- | ||||
| 15 | 49001005 | Manual, Use & Care | 10 |
|
- | ||||
| 16 | CUSTOM GASKET | Filter, Mesh(30`` Set Of 2) (Replaces: 49001002) | 10 |
|
$ 0.03 | ||||
| 17 | 49001169 | Filter, Carbon (set Of 2) | 10 |
|
- | ||||
| 18 | 49001178 | Extension, Chimney | 10 |
|
- | ||||
| 19 | 49001312 | Kit, Hardware Install | 10 |
|
- | ||||
| 20 | 16023510 | Svc Man, Vent Hoods | 10 |
|
- | ||||
| 21 | 16023513 | Tech Sht, Vent Hoods | 10 |
|
- |
