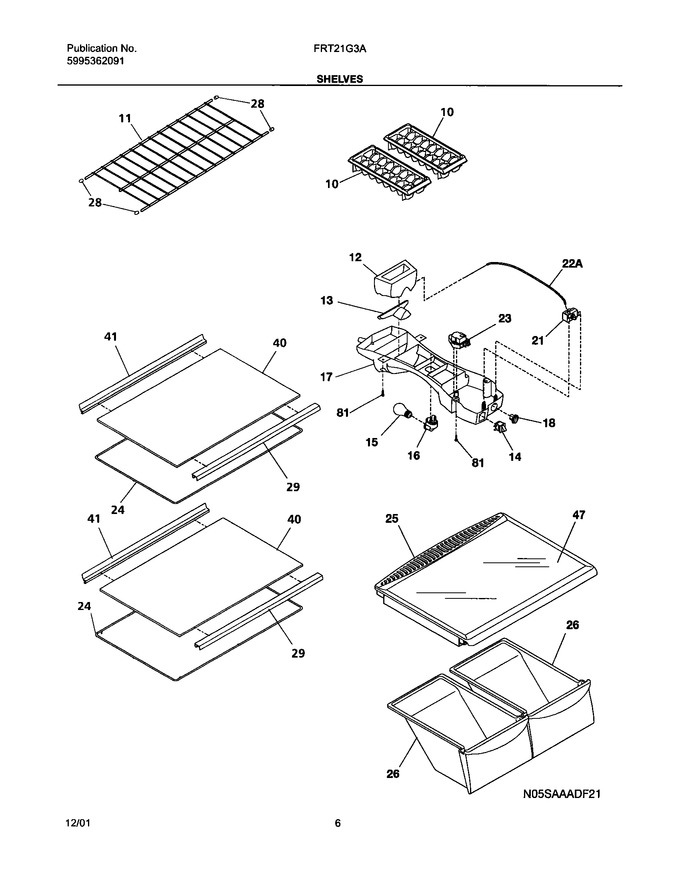

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.74
11	240358003		Shelf-freezer		Appelez-nous	-
12	240545901		Diffuser-air,top   (Replaces: 240380202)				$ 77.96
13	240362601		Diffuser-air,bottom			Immediately	$ 46.46
15	316538904		Light Bulb/lamp,a-15 ,40 W ,120 V ,miniature   (Replaces: 240436701)			Immediately	$ 22.75
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 80.75
17	240368105		Box-control   (Replaces: 240368101)			Immediately	$ 144.93
18	240360801		Knob-control				$ 43.95
24	240372407		Frame-shelf,sliding ,full Width				$ 151.68
25	240364716		Cover-crisper Pan				$ 198.45
26	240343803		Pan-crisper,(2)   (Replaces: 240343801)			Immediately	$ 191.01
28	3201150		End Cap,freezer Shelf ,protector				$ 4.57
29	240357704		Trim-shelf,front			Immediately	$ 73.61
40	240350621		Glass-shelf,23.78 X 18.02 ,full Shelf				$ 179.55
41	240561502		Trim-shelf,rear   (Replaces: 240357804)			Immediately	$ 79.54
47	240350609		Insert-pan Cover,glass				$ 180.33
81	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 67.73
F14	240505801		Switch-light/lamp				$ 74.03
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 80.34
F23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 31.33
NI	3205266		Edge Protector, Wiring Harness				$ 88.99
NI	240392601		Seal-diffuser				$ 6.57
NI	5304455649		Screw   (Replaces: 5303001259)				$ 18.90
NI	5303299664		Spacer-shelf				$ 26.78
NI	240388701		Wiring Harness,control Box			Immediately	$ 88.99
