SELECT A DIAGRAM

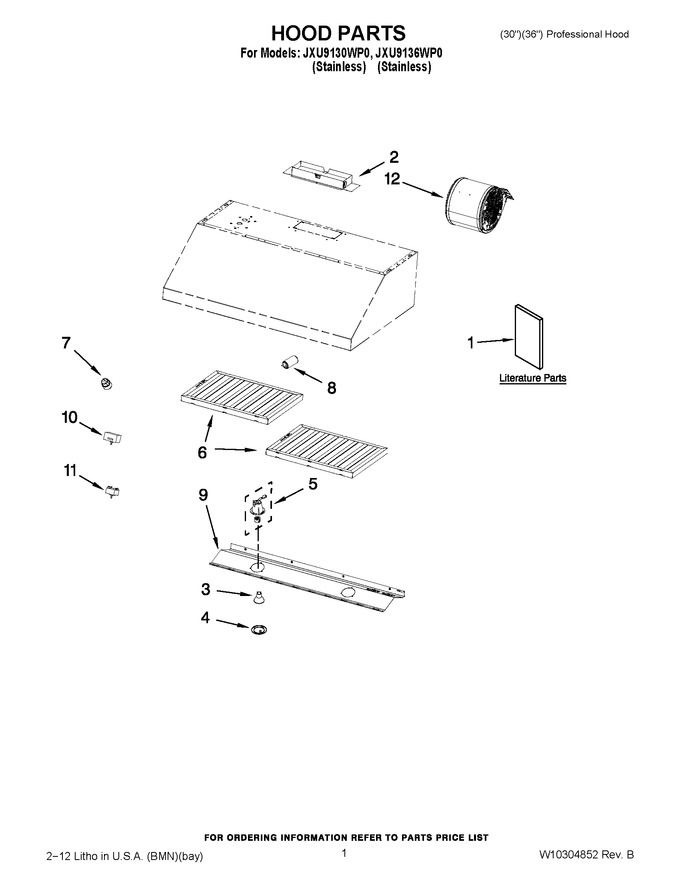

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10293969 | Use & Care Guide |
|
$ 58.23 | |||||
| 2 | WPW10291572 | Damper Assembly (Replaces: W10291572) |
|
$ 195.58 | |||||
| 3 | WPW10291579 | Light Bulb (Replaces: W10291579) |
|
Immediately | $ 206.90 | ||||
| 4 | W10351924 | Light Bezel (Replaces: W10291578) |
|
$ 197.59 | |||||
| 5 | W10295808 | Light Assembly |
|
Immediately | $ 110.92 | ||||
| 6 | W10351892 | Grease Filter (36``) (Replaces: W10294012) |
|
$ 269.64 | |||||
| 6 | W10351890 | Grease Filter (30``) (Replaces: W10294004) |
|
$ 117.92 | |||||
| 7 | WPW10294009 | Knob (Replaces: W10294009) |
|
$ 72.22 | |||||
| 8 | 8186677 | Capacitor |
|
$ 235.77 | |||||
| 9 | W10295809 | Control Panel (30``) |
|
$ 321.39 | |||||
| 9 | W10295810 | Control Panel (36``) |
|
- | |||||
| 10 | W10293968 | Light Switch |
|
$ 128.15 | |||||
| 11 | W10293967 | Fan Switch |
|
$ 136.67 | |||||
| 12 | WPW10293966 | Fan Assembly (Replaces: W10293966) |
|
Immediately | $ 634.09 |
