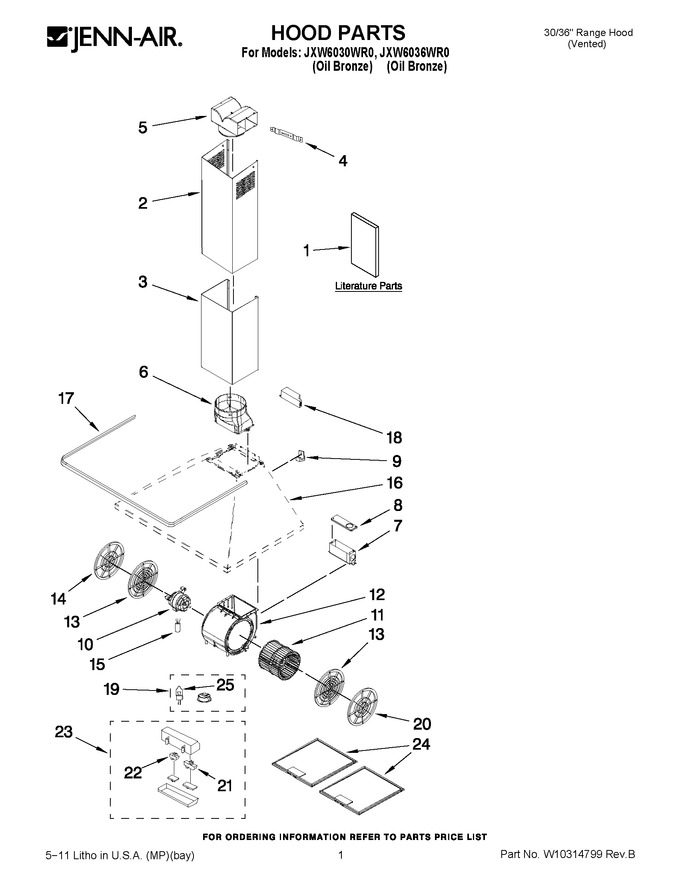

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10272475 | Use & Care Guide |
|
- | |||||
| 2 | W10314793 | Chimney, Upper |
|
$ 583.25 | |||||
| 3 | W10314792 | Chimney, Lower |
|
$ 583.25 | |||||
| 4 | 8190843 | Bracket, Mounting |
|
$ 36.86 | |||||
| 5 | W10169958 | Duct, Air Diverter |
|
- | |||||
| 6 | W10169956 | Duct, Air Connect |
|
- | |||||
| 7 | W10169952 | Box, Control |
|
- | |||||
| 8 | 8186708 | Cover |
|
- | |||||
| 9 | 8190805 | Bracket, Mounting |
|
$ 5.86 | |||||
| 10 | W10169948 | Motor, Fan |
|
$ 382.10 | |||||
| 11 | W10169955 | Wheel, Blower |
|
$ 299.65 | |||||
| 12 | 8190813 | Housing, Fan Motor |
|
$ 45.47 | |||||
| 13 | W10169945 | Endcap, Blower |
|
- | |||||
| 14 | W10169962 | Filter, Charcoal |
|
- | |||||
| 15 | 8186677 | Capacitor |
|
$ 235.77 | |||||
| 16 | N/P | Canopy (not Serviced) |
|
- | |||||
| 17 | W10169976 | Trim (frame) (36`` Hood) |
|
- | |||||
| 17 | W10169944 | Trim (frame) (30`` Hood) |
|
$ 268.49 | |||||
| 18 | W11186486 | Transformer (110-127v,20-6w) (Replaces: 8186686) |
|
Immediately | $ 229.15 | ||||
| 19 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 20 | W10169946 | Support, Motor |
|
- | |||||
| 21 | 8190854 | Switch, Motor |
|
$ 51.53 | |||||
| 22 | 8190855 | Switch, Light |
|
$ 69.43 | |||||
| 23 | W10169947 | Slider, Control (complete) |
|
$ 149.29 | |||||
| 24 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 41.83 | ||||
| 25 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 29.28 | ||||
| NI | W10314796 | Hardware, Mounting |
|
- |
