01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Ice Maker Kit Amkit02 P1328005w 12002047


07 - Interior Cabinet & Freezer Shelving


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplemental Information


11 - Water Dispenser/filter


12 - Wiring Information

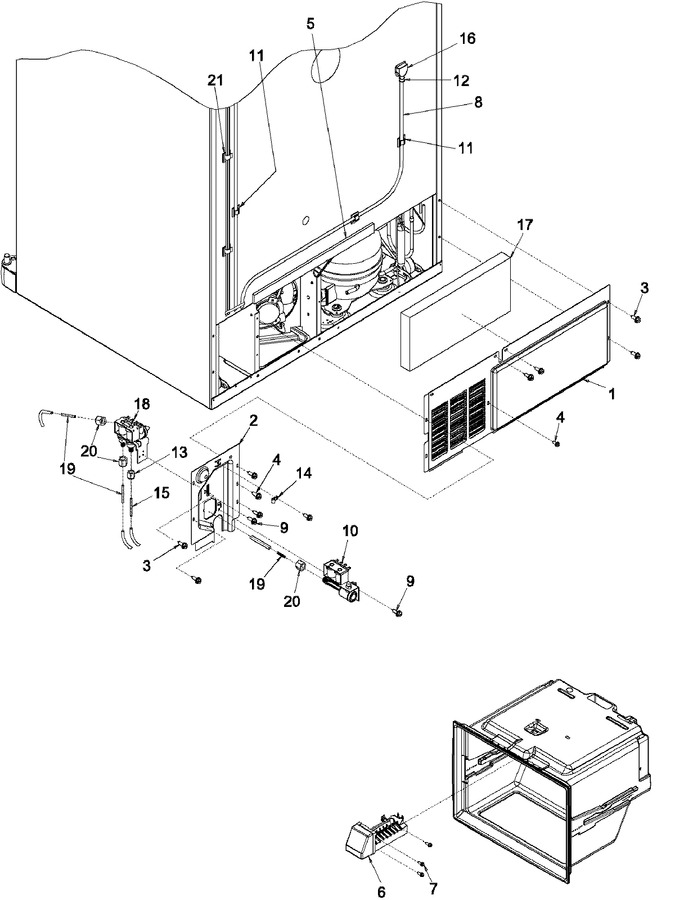

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12575102ED		Back, Mc		Appelez-nous	-
2	67002514		Cover, Water Valve		Appelez-nous	-
3	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
4	681390		Screw   (Replaces: M0251015)				$ 13.06
5	B5759649		Gasket, Mc Back		Appelez-nous	-
6	D7824706Q		Ice Maker Assy.   (Replaces: 61005508)			Immediately	$ 167.35
7	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
8	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 7.82
8	W10823511		Tube, Plastic   (Replaces: B5705323)			Immediately	$ 32.41
9	WP489128		Screw   (Replaces: M0253516)				$ 10.88
10	WP12544002		Valve, Primary Water   (Replaces: 12544002)			Immediately	$ 244.10
11	WPM0104106		Clip   (Replaces: M0104106)				$ 7.78
12	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
13	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 10.97
14	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
15	A1055105		Spring, Anti Kink		Appelez-nous	-
16	W11176463		Elbow, Fill Tube   (Replaces: 10463201)			Immediately	$ 114.15
17	67001725		Fiber, Acoustic		Appelez-nous	-
18	12002193		Valve, Secondary Water   (Replaces: 67001726)				$ 206.00
19	A1055104		Spring, Anti-kink		Appelez-nous	-
20	M0753002		Nut, Sleeve		Appelez-nous	-
21	M0104102		Clip, Cord				$ 8.10
22	WP67001255		Pan, Ice   (Replaces: 67001255)				$ 203.08
23	WP67006506		Cord, Power   (Replaces: 12583301)				$ 26.42
