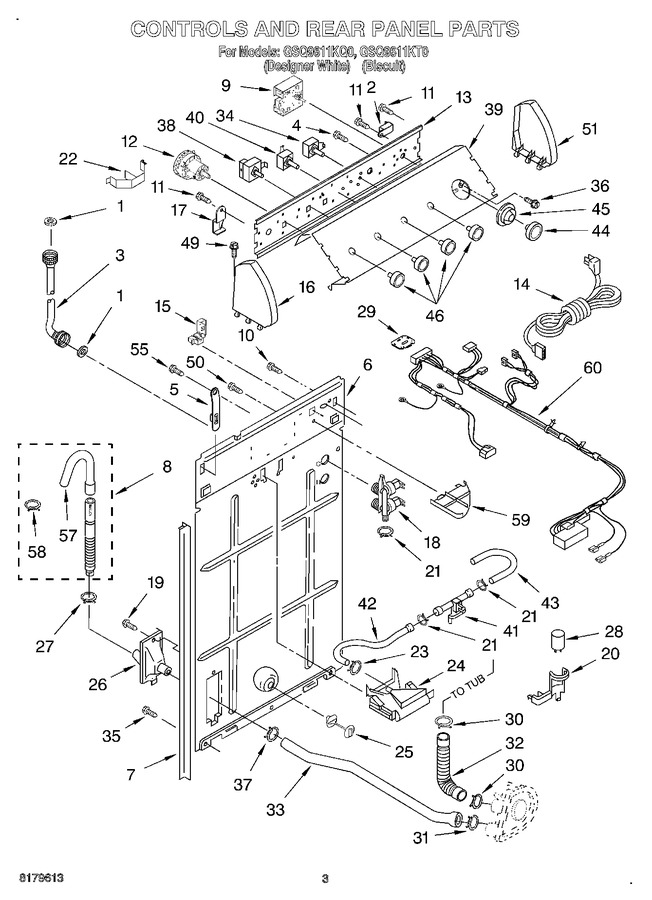

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
3	WP89503		Hose, Water Inlet (2) ((red Coupler))   (Replaces: 3949369)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) ((blue Coupler))   (Replaces: 3949368)			Immediately	$ 24.09
4	3400073		Screw, Ground		Appelez-nous	-
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 7.78
6	8528062		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 60.90
9	WP3954071		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3954071)				$ 315.63
10	WP3351614		Screw, 10-24 X 3/8   (Replaces: 3351614)			Immediately	$ 6.95
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10335056		Switch, Water Level   (Replaces: 3366846)			Immediately	$ 91.84
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 116.19
14	W10820044		Cord, Power   (Replaces: 3948063)				$ 142.73
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
16	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
17	8283343		Retainer, Harness		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 55.08
19	WP3351614		Screw, 10-24 X 1/2   (Replaces: 90864)			Immediately	$ 6.95
20	8318201		Clip, Capacitor		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.40
22	8055003		Clip, Harness & Pressure Hose				$ 36.24
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
26	WPW10358149		Connector, Drain Hose   (Replaces: 3361809)			Immediately	$ 48.16
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
28	WP8572720		Capacitor, Motor Start   (Replaces: 661605)				$ 127.81
29	3407125		Control, Etc		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP371502		Clamp, Hose   (Replaces: 371507)				$ 11.53
32	285871		Hose, Pump To Tub (includes No.30)   (Replaces: 3951449)			Immediately	$ 26.68
33	3359816		Hose, Pump To Drain Connector		Appelez-nous	-
34	WPW10168257		Switch, Rotary   (Replaces: 661613)				$ 133.33
35	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
36	WP3400064		Screw, Timer Mounting (2)   (Replaces: 3400064)				$ 6.95
37	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
38	3950358		Switch Temperature		Appelez-nous	-
39	3955364		Panel, Console (biscuit)		Appelez-nous	-
39	3955363		Panel, Console (white)		Appelez-nous	-
40	WPW10168257		Switch, Rotary   (Replaces: 661613)				$ 133.33
41	3352282		Sensor-etc-inline				$ 66.68
42	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 21.34
43	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 27.21
44	WP3364293		Knob, Timer (white)   (Replaces: 8274290)			Immediately	$ 59.45
44	8274293		Knob, Timer (biscuit)		Appelez-nous	-
45	WP3957849		Dial, Timer (white)   (Replaces: 8271351)				$ 45.78
45	8271370		Dial, Timer (biscuit)		Appelez-nous	-
46	3957797		Knob, Control (4) (biscuit)   (Replaces: 8271348)				$ 50.40
46	WP3957799		Knob, Control (4) (white)   (Replaces: 8271339)				$ 52.44
49	WP388326		Screw, 8-18 X 1-1/4   (Replaces: 388326)				$ 8.11
50	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
51	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
51	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
57	WP3357027		Nozzle, Hose Drain   (Replaces: 3357027)				$ 93.20
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 7.56
59	3348424		Sheild, Suds		Appelez-nous	-
60	3955197		Harness, Wiring		Appelez-nous	-
