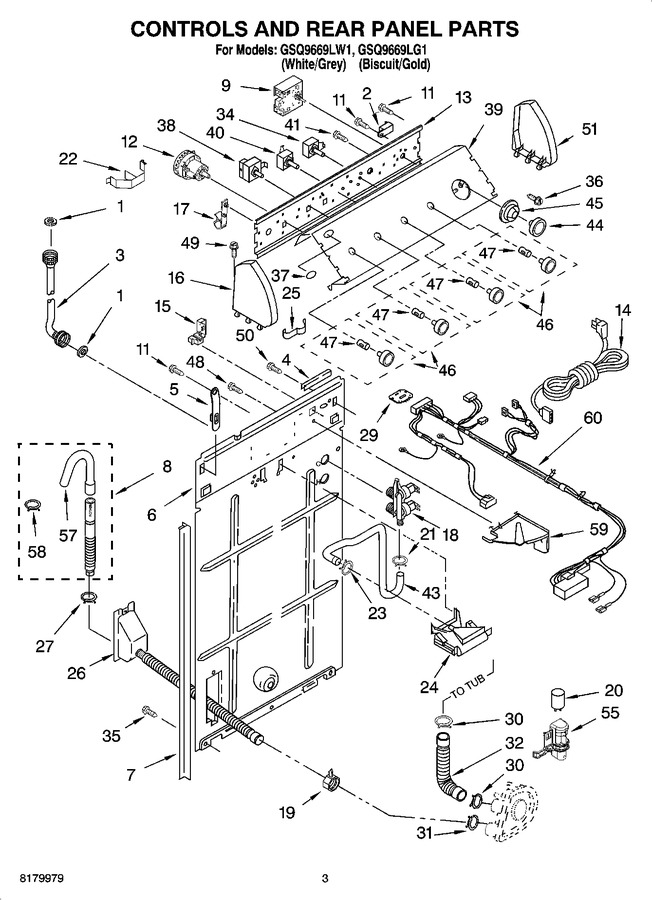

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 7.70 | |||||
| 2 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) ((red Coupler)) (Replaces: 3949375) |
|
Immediately | $ 24.09 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) ((blue Coupler)) (Replaces: 3949374) |
|
Immediately | $ 24.09 | ||||
| 4 | 303294 | Edge Protector |
|
- | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8318255) |
|
$ 7.78 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 26.26 | |||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 62.34 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 36.89 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 60.90 | ||||
| 9 | WP3955765 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 3955765) |
|
$ 324.95 | |||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 12 | W10339326 | Switch, Water Level (Replaces: 3366845) |
|
Immediately | $ 87.97 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 116.19 | |||||
| 14 | 661661 | Cord, Power (includes Item 15) |
|
$ 25.46 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 16 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 17 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 18 | WP3979346 | Valve, Water Inlet & Thermistor Assy. (Replaces: 3979347) |
|
Immediately | $ 76.88 | ||||
| 19 | 3976395 | Clamp, Hose |
|
$ 11.96 | |||||
| 20 | WP8572720 | Capacitor (Replaces: 661605) |
|
$ 127.81 | |||||
| 21 | WP596669 | Clamp, Hose Break (Replaces: 301958) |
|
Immediately | $ 8.40 | ||||
| 22 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 23 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.40 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 25 | 8528351 | Clip, Harness (Replaces: 3347812) |
|
- | |||||
| 26 | WPW10358149 | Assembly, Drain Hose (Replaces: 8317940) |
|
Immediately | $ 48.16 | ||||
| 27 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.81 | ||||
| 29 | 8539879 | Control, Atc |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.81 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes 30) (Replaces: 3951449) |
|
Immediately | $ 26.68 | ||||
| 34 | 3956080 | Switch, Rotary |
|
$ 172.25 | |||||
| 35 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.96 | |||||
| 37 | 3955776 | Medallion |
|
- | |||||
| 38 | 3950358 | Switch Temperature |
|
- | |||||
| 39 | 3955812 | Panel, Console (includes Item 37) (grey) |
|
- | |||||
| 39 | 3955813 | Panel, Console (includes Item 37) (gold) |
|
- | |||||
| 40 | W10168264 | Switch, Rotary (Replaces: 3950356) |
|
$ 126.34 | |||||
| 41 | 3400073 | Screw, Ground |
|
- | |||||
| 43 | WP8317926 | Hose, Vacuum Break (Replaces: 8317974) |
|
Immediately | $ 23.69 | ||||
| 44 | 8538952 | Knob, Timer (for Gsq9669lg1) |
|
$ 33.31 | |||||
| 44 | WP8538949 | Knob, Timer (for Gsq9669lw1) (Replaces: 8538949) |
|
$ 59.02 | |||||
| 45 | WP8538955 | Dial, Timer (for Gsq9669lw1) (Replaces: 8538955) |
|
$ 53.03 | |||||
| 45 | 8538956 | Dial, Timer (for Gsq9669lg1) |
|
- | |||||
| 46 | WP8538957 | Knob, Control (for Gsq9669lw1) (Replaces: 8538957) |
|
$ 55.74 | |||||
| 46 | 8538958 | Knob, Control (for Gsq9669lg1) |
|
- | |||||
| 47 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 48 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 8.11 | |||||
| 50 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 51 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 51 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 55 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 57 | WP3357027 | Nozzle, Hose Drain (Replaces: 3357027) |
|
$ 93.20 | |||||
| 58 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 7.56 | |||||
| 59 | 8539874 | Shield, Suds |
|
$ 7.01 | |||||
| 60 | 3956277 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- |
