01 - Cabinet Parts

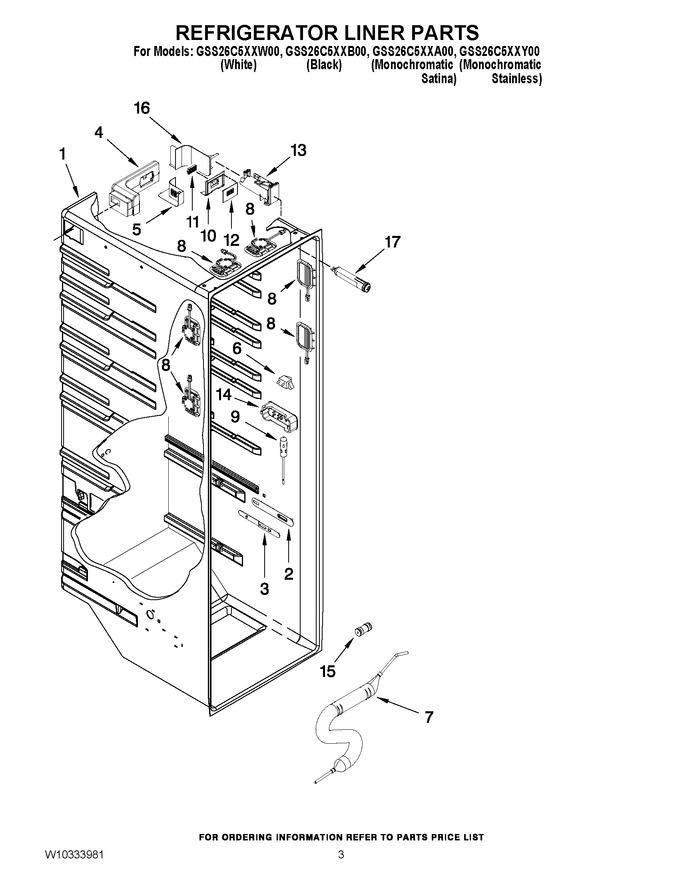

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10260988		Escutcheon, Meat Pan Control		Appelez-nous	-
3	W10260989		Slide, Meat Pan Control		Appelez-nous	-
4	W10814173		Air Diffuser Assembly   (Replaces: W10251495)			Immediately	$ 360.54
5	W10310321		Air Diffuser Cover		Appelez-nous	-
6	W11384469		Switch Rocker Arm   (Replaces: C3680314)			Immediately	$ 39.09
7	W11802492		Reservoir   (Replaces: W10238085)				$ 88.91
8	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 271.97
9	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 33.60
10	W10260413		Air Filter Housing		Appelez-nous	-
11	W10311524		Air Filter   (Replaces: W10315189)			Immediately	$ 14.34
12	W10251520		Air Filter Cover		Appelez-nous	-
13	WPW10238123		Housing, Water Filter   (Replaces: W10238123)				$ 239.81
14	WPW10425252		Cover, Thermistor   (Replaces: W10251510)			Immediately	$ 88.38
15	WPW10271543		Connector, 1/4 X 5/16   (Replaces: W10271543)			Immediately	$ 35.43
16	WPW10260405		Cover, Water Filter   (Replaces: W10260403)				$ 118.77
17	EDR1RXD1B		Water Filter   (Replaces: W10295370)			Immediately	$ 49.99

    View Diagram in Separate Window       Print Part List
