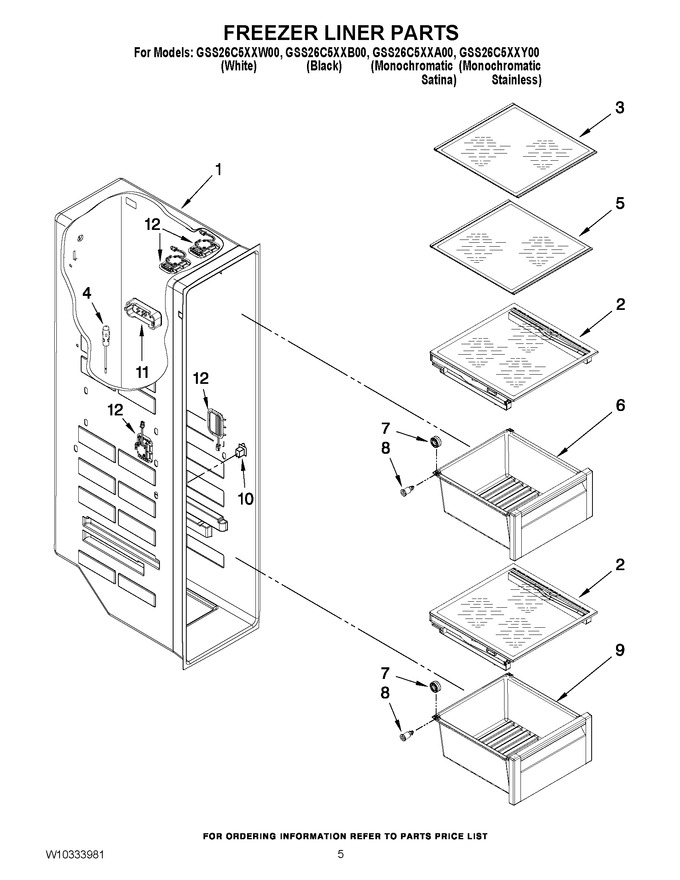

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WPW10269181 | Cover Assy (Replaces: W10269181) |
|
$ 254.26 | |||||
| 3 | WPW10269184 | Shelf, Glass Upper (Replaces: W10269184) |
|
$ 254.49 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 32.00 | ||||
| 5 | W11094295 | Shelf, Glass Lower (Replaces: W10278132) |
|
$ 216.51 | |||||
| 6 | W10846447 | Pan, Freezer Upper Also Order 7 & 8 (Replaces: W10256823) |
|
Immediately | $ 260.35 | ||||
| 7 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 14.99 | ||||
| 8 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 34.80 | |||||
| 9 | WPW10256827 | Pan, Freezer Lower Also Order 7 & 8 (Replaces: W10256827) |
|
$ 151.83 | |||||
| 10 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 38.18 | |||||
| 11 | W10425253 | Cover, Thermistor (Replaces: W10323646) |
|
- | |||||
| 12 | W11683241 | Led Light Assy (Replaces: W10279030) |
|
Immediately | $ 259.02 |
