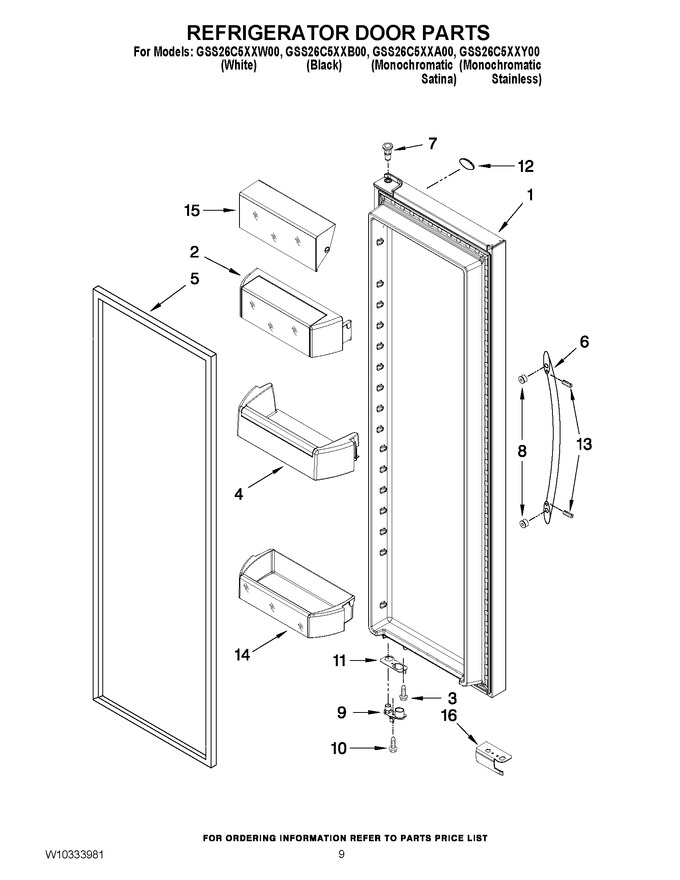

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10261114 | Refrigerator Door (includes Item 5) (white) (Replaces: W10261114) |
|
$ 604.73 | |||||
| 1 | W10287397 | Refrigerator Door (includes Item 5) (black) |
|
- | |||||
| 1 | W10281909 | Refrigerator Door (includes Item 5) (momo Satina) |
|
- | |||||
| 1 | W10287399 | Refrigerator Door (includes Item 5) (mono Stainless) |
|
- | |||||
| 2 | WPW10324760 | Door Compartment Assembly (Replaces: W10256782) |
|
$ 85.60 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | W10335221 | Door Bin, Shallow |
|
$ 35.30 | |||||
| 5 | WPW10247884 | Door Gasket, Magnetic (mist Beige) (Replaces: W10247884) |
|
$ 322.97 | |||||
| 5 | W10355582 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10249916) |
|
$ 341.26 | |||||
| 5 | WPW10249912 | Door Gasket, Magnetic (black) (Replaces: W10249912) |
|
$ 329.18 | |||||
| 6 | WPW10268057 | Handle (black) (Replaces: W10268057) |
|
$ 174.11 | |||||
| 6 | WPW10268056 | Handle (white) (Replaces: W10268056) |
|
$ 174.11 | |||||
| 6 | WPW10670421 | Handle (stainless/satina) (Replaces: W10274730) |
|
$ 254.15 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 8.15 | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 9 | WPW10257201 | Door Closer, Upper Cam (black) (Replaces: W10257201) |
|
$ 12.93 | |||||
| 9 | WPW10248011 | Door Closer, Upper Cam (white) (Replaces: W10248011) |
|
$ 12.93 | |||||
| 9 | WPW10257203 | Door Closer, Upper Cam (apollo Grey) (Replaces: W10257203) |
|
$ 12.96 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (chrome) (Replaces: W10247909) |
|
$ 80.24 | |||||
| 12 | 2220214 | Nameplate (gold) |
|
$ 32.43 | |||||
| 13 | WPW10010150 | Set Screw (black) (Replaces: W10010150) |
|
$ 8.57 | |||||
| 13 | W11366418 | Set Screw (chrome) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 14 | WPW10335220 | Door Bin, Gallon (Replaces: W10335219) |
|
$ 93.59 | |||||
| 15 | W10256784 | Door, Compartment |
|
$ 34.98 | |||||
| 16 | W11661847 | Cover, Door Stop (midnight Grey) (Replaces: W10257218) |
|
Immediately | $ 31.71 | ||||
| 16 | W10257216 | Cover, Door Stop (black) |
|
- | |||||
| 16 | W10789144 | Cover, Door Stop (white) (Replaces: W10248013) |
|
$ 19.38 |
