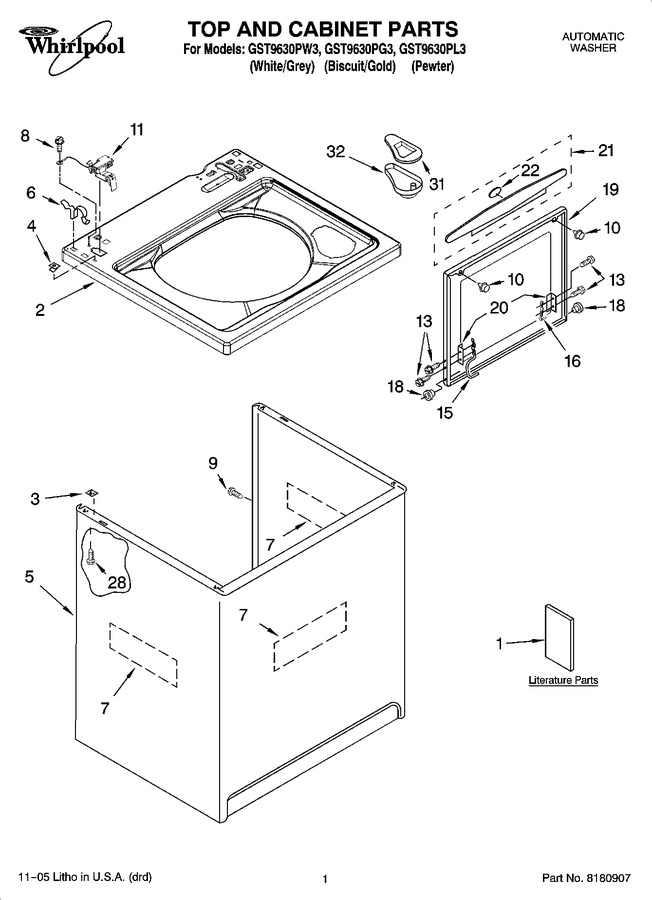

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | 8578232 | Use & Care Guide |
|
- | |||||
| 1 | 3955903 | Feature Sheet |
|
- | |||||
| 1 | 3957478 | Energy Guide |
|
- | |||||
| 1 | 8565442 | Wiring Diagram |
|
- | |||||
| 1 | 4313896 | Manual, Washer |
|
$ 33.26 | |||||
| 1 | 3958075 | Installation Instructions |
|
- | |||||
| 2 | 8543448 | Top (biscuit) |
|
- | |||||
| 2 | 8543449 | Top (pewter) |
|
- | |||||
| 2 | 8543447 | Top (white) |
|
$ 127.50 | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 7.69 | ||||
| 4 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 5 | 3956112 | Cabinet (pewter) |
|
- | |||||
| 5 | 3954357 | Cabinet (biscuit) |
|
$ 268.04 | |||||
| 5 | 63424 | Cabinet (white) |
|
$ 370.02 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.80 | ||||
| 7 | 3976348 | Cabinet - Sound Damper (3) |
|
$ 37.92 | |||||
| 8 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 9 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 10 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 7.93 | ||||
| 11 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 39.82 | ||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 355274) |
|
Immediately | $ 7.19 | ||||
| 15 | 8559336 | Hinge, Lid (l.h.) |
|
- | |||||
| 16 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 27.45 | |||||
| 18 | 8319539 | Bearing, Lid Hinge (2) |
|
$ 5.51 | |||||
| 19 | 8558400 | Lid (pewter) |
|
- | |||||
| 19 | 8558401 | Lid (white) |
|
- | |||||
| 19 | 8558402 | Lid (biscuit) |
|
- | |||||
| 20 | WP21097 | Pad, Lid Hinge (2) (Replaces: 21097) |
|
$ 7.80 | |||||
| 21 | 3956011 | Handle, Lid (sage) |
|
- | |||||
| 21 | 3956012 | Handle, Lid (pewter) |
|
- | |||||
| 22 | 3956010 | Insert, Handle |
|
- | |||||
| 28 | WP3390631 | Screw, 10-16 X 3/8 (4) (Replaces: 3390631) |
|
$ 7.82 | |||||
| 31 | 3956079 | Cover, Dispenser |
|
- | |||||
| 32 | 8519517 | Dispenser, Bleach |
|
$ 93.87 |
