SELECT A DIAGRAM

01 - Top And Cabinet, Literature

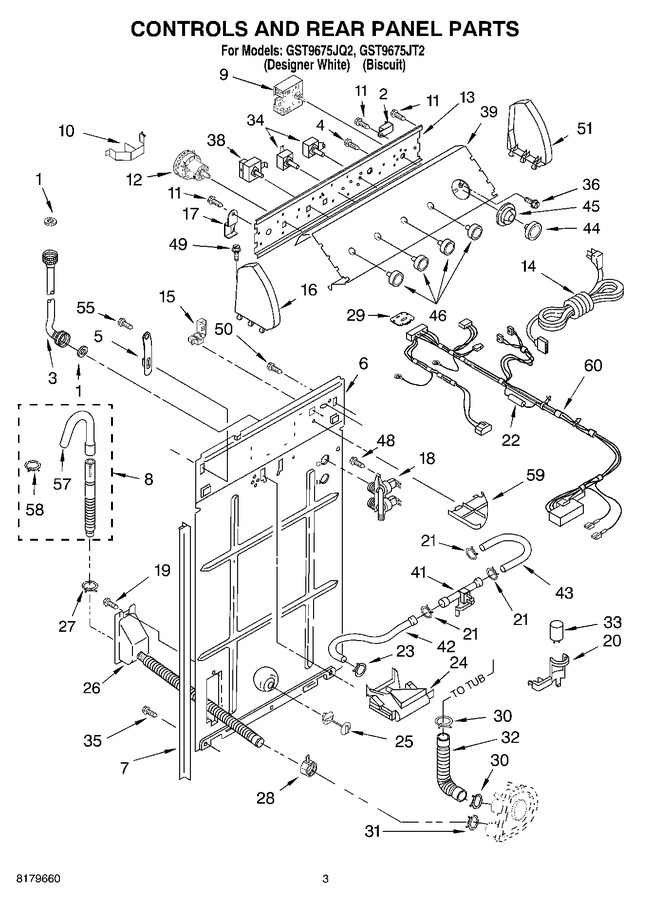

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Wiring Harness


07 - Brake And Drive Tube


08 - Gearcase


09 - Water System


10 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 8.16
2	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
3	WP89503		Hose, Water Inlet (2) ((blue Coupler))   (Replaces: 3949374)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) ((red Coupler))   (Replaces: 3949375)			Immediately	$ 24.09
4	3400073		Screw, Ground		Appelez-nous	-
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 8.17
6	8528062		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 63.94
9	WP3954071		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3954071)				$ 331.41
10	8055003		Clip, Harness & Pressure Hose				$ 36.24
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 8.25
12	W10335056		Switch, Water Level   (Replaces: 3366846)			Immediately	$ 91.84
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 122.00
14	W10820044		Cord, Power   (Replaces: 3948063)				$ 149.87
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
16	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
17	8283343		Retainer, Harness		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 55.08
19	WP3351614		Screw, 10-24 X 1/2   (Replaces: 90864)			Immediately	$ 7.30
20	8318201		Clip, Capacitor		Appelez-nous	-
21	WP596669		Clamp, Hose Break   (Replaces: 370451)			Immediately	$ 8.82
22	8317387		Fuse (in Harness)		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 19.85
26	8317941		Drain Hose Assembly				$ 25.66
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
28	3976395		Clamp, Hose				$ 11.96
29	3407125		Control, Etc		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 8.58
31	WP371502		Clamp, Hose   (Replaces: 371507)				$ 12.31
32	285871		Hose, Pump To Tub (includes No.30)   (Replaces: 3951449)			Immediately	$ 28.99
33	WP8572720		Capacitor, Motor Start   (Replaces: 661605)				$ 134.20
34	WPW10168257		Switch, Rotary   (Replaces: 661613)				$ 140.00
35	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
36	WP3400064		Screw, Timer Mounting (2)   (Replaces: 3400064)				$ 7.30
38	661615		Switch, Temperature				$ 62.82
39	3954202		Panel, Console (biscuit)		Appelez-nous	-
39	3954201		Panel, Console (white)		Appelez-nous	-
41	3352282		Sensor-etc-inline				$ 66.68
42	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 22.41
43	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 28.57
44	WP3364293		Knob, Timer (white)   (Replaces: 8274290)			Immediately	$ 62.42
44	8274293		Knob, Timer (biscuit)		Appelez-nous	-
45	WP3957849		Dial, Timer (white)   (Replaces: 8271351)				$ 48.07
45	8271370		Dial, Timer (biscuit)		Appelez-nous	-
46	3957797		Knob, Control (biscuit)   (Replaces: 8271348)				$ 52.92
46	WP3957799		Knob, Control (white)   (Replaces: 8271339)				$ 55.06
48	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 9.29
50	WP3351614		Screw   (Replaces: 3351614)			Immediately	$ 7.30
51	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
51	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
55	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
57	WP3357027		Nozzle, Hose Drain   (Replaces: 3357027)				$ 97.86
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 8.19
59	3348424		Sheild, Suds		Appelez-nous	-
60	3955024		Harness, Wiring (for Detail See Parts Page)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
