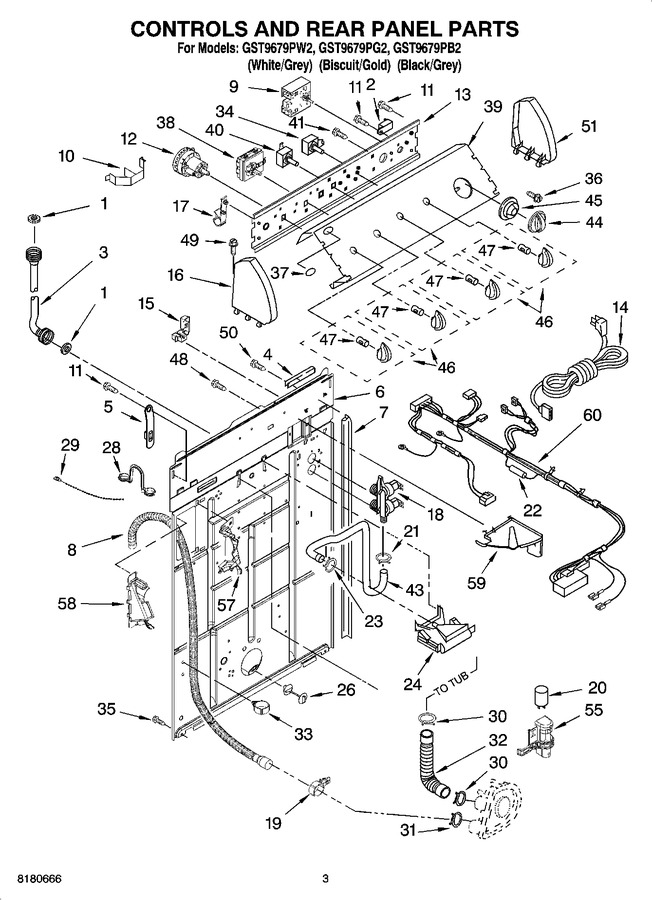

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 8.16 | |||||
| 2 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (red Coupler) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 3 | WP89503 | Hose, Water Inlet (2) (blue Coupler) (Replaces: 8571377) |
|
Immediately | $ 24.09 | ||||
| 4 | 303294 | Edge Protector |
|
- | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 8.17 | |||||
| 6 | 8318015 | Panel, Rear |
|
$ 148.59 | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | WPW10096921 | Drain Hose Assembly (includes Items 19 & 33) (Replaces: 8559373) |
|
Immediately | $ 67.38 | ||||
| 9 | WP3955765 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 3955765) |
|
$ 341.20 | |||||
| 10 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 12 | W10339326 | Switch, Water Level (Replaces: 3366845) |
|
Immediately | $ 87.97 | ||||
| 13 | 8544893 | Bracket, Control |
|
$ 62.87 | |||||
| 14 | 661661 | Cord, Power (includes Item 15) |
|
$ 25.46 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 16 | 8271367 | Cap, End (l.h.) (black) |
|
- | |||||
| 16 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 17 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 18 | WP3979346 | Valve, Water Inlet & Thermistor Assy. (Replaces: 3979347) |
|
Immediately | $ 76.88 | ||||
| 19 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 20 | WP8572720 | Capacitor (Replaces: 661605) |
|
$ 134.20 | |||||
| 21 | WP596669 | Clamp, Hose Break (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 22 | 8317387 | Fuse (in Harness) |
|
- | |||||
| 23 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 28 | WP8577378 | U-bend, Drain Hose (Replaces: 8541672) |
|
$ 8.37 | |||||
| 29 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes 30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 33 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 34 | 3956080 | Switch, Rotary |
|
$ 172.25 | |||||
| 35 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 8.81 | |||||
| 37 | 8533990 | Medallion |
|
- | |||||
| 38 | 8564137 | Switch, Water Temperature (atc) |
|
$ 101.64 | |||||
| 39 | 3956605 | Panel, Console (includes Item 37) (gold) |
|
- | |||||
| 39 | 3956604 | Panel, Console (includes Item 37) (silver) |
|
- | |||||
| 40 | W10168264 | Switch, Rotary (Replaces: 3950356) |
|
$ 132.66 | |||||
| 41 | 3400073 | Screw, Ground |
|
- | |||||
| 43 | WP8317926 | Hose, Vacuum Break (Replaces: 8317974) |
|
Immediately | $ 24.87 | ||||
| 44 | 8544945 | Knob, Timer (silver) |
|
$ 38.06 | |||||
| 44 | 8544946 | Knob, Timer (biscuit) |
|
$ 36.25 | |||||
| 45 | WP8544947 | Dial, Timer (white) (Replaces: 8544947) |
|
$ 90.44 | |||||
| 45 | 8544948 | Dial, Timer (biscuit) |
|
- | |||||
| 46 | 8544937 | Knob, Control (silver) |
|
$ 24.98 | |||||
| 46 | 8544938 | Knob, Control (biscuit) |
|
$ 22.73 | |||||
| 47 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 48 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 9.29 | |||||
| 50 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 51 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 51 | 8271361 | Cap, End (r.h.) (black) |
|
- | |||||
| 51 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 55 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 57 | WPW10096921 | Bucket, Drain Hose (Replaces: 8541669) |
|
Immediately | $ 67.38 | ||||
| 58 | WPW10096921 | Bucket, Drain Hose (Replaces: 8541658) |
|
Immediately | $ 67.38 | ||||
| 59 | 8539874 | Shield, Suds |
|
$ 7.01 | |||||
| 60 | 3957254 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- |
