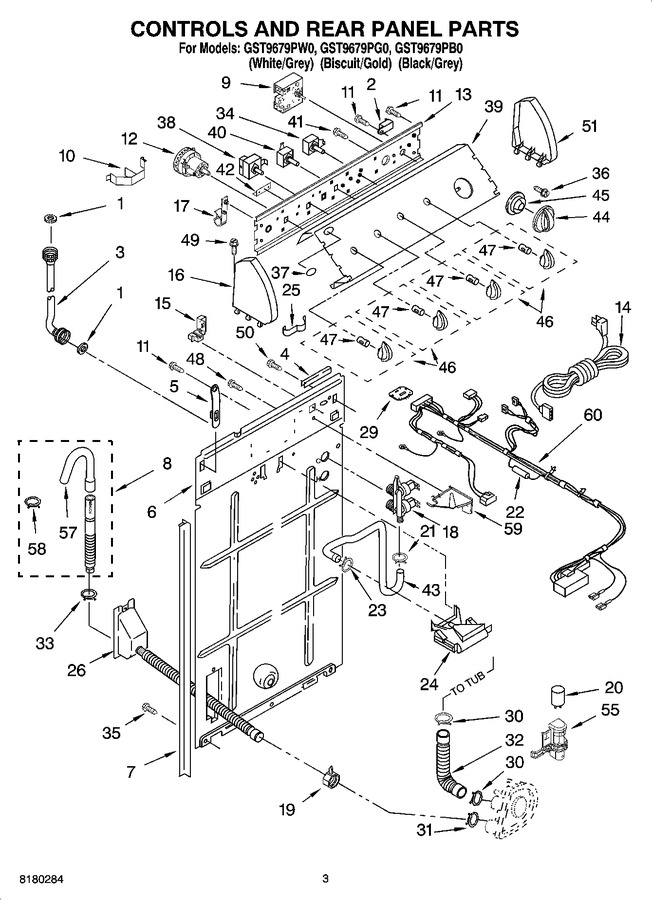

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts


10 - Miscellaneous Parts - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
3	WP89503		Hose, Water Inlet (2) ((blue Coupler))   (Replaces: 3949374)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) ((red Coupler))   (Replaces: 3949375)			Immediately	$ 24.09
4	303294		Edge Protector		Appelez-nous	-
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 7.78
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 60.90
9	WP3955765		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3955765)				$ 324.95
10	8055003		Clip, Harness & Pressure Hose				$ 36.24
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10339326		Switch, Water Level   (Replaces: 3366845)			Immediately	$ 87.97
13	8544893		Bracket, Control				$ 62.87
14	661661		Cord, Power (includes Item 15)				$ 25.46
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	8271367		Cap, End (l.h.) (black)		Appelez-nous	-
16	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
16	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
17	8317975		Retainer, Harness				$ 5.86
18	WP3979346		Valve, Water Inlet & Thermistor Assy.   (Replaces: 3979347)			Immediately	$ 76.88
19	3976395		Clamp, Hose				$ 11.96
20	WP8572720		Capacitor   (Replaces: 661605)				$ 127.81
21	WP596669		Clamp, Hose Break   (Replaces: 301958)			Immediately	$ 8.40
22	8317387		Fuse (in Harness)		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
26	WPW10358149		Assembly, Drain Hose   (Replaces: 8317940)			Immediately	$ 48.16
29	8539879		Control, Atc		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
34	3956080		Switch, Rotary				$ 172.25
35	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	8533990		Medallion		Appelez-nous	-
38	3956646		Switch, Temperature		Appelez-nous	-
39	3956605		Panel, Console (includes Item 37) (gold)		Appelez-nous	-
39	3956604		Panel, Console (includes Item 37) (silver)		Appelez-nous	-
40	W10168264		Switch, Rotary   (Replaces: 3950356)				$ 126.34
41	3400073		Screw, Ground		Appelez-nous	-
42	8316039		Shield, Atc		Appelez-nous	-
43	WP8317926		Hose, Vacuum Break   (Replaces: 8317974)			Immediately	$ 23.69
44	8544946		Knob, Timer (biscuit)				$ 36.25
44	8544945		Knob, Timer (silver)				$ 38.06
45	WP8544947		Dial, Timer (white)   (Replaces: 8544947)				$ 86.13
45	8544948		Dial, Timer (biscuit)		Appelez-nous	-
46	8544937		Knob, Control (silver)				$ 24.98
46	8544938		Knob, Control (biscuit)				$ 22.73
47	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
48	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.11
50	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
51	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
51	8271361		Cap, End (r.h.) (black)		Appelez-nous	-
51	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
55	8318046		Clip, Capacitor				$ 79.31
57	WP3357027		Nozzle, Hose Drain   (Replaces: 3357027)				$ 93.20
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 7.56
59	8539874		Shield, Suds				$ 7.01
60	3956278		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
