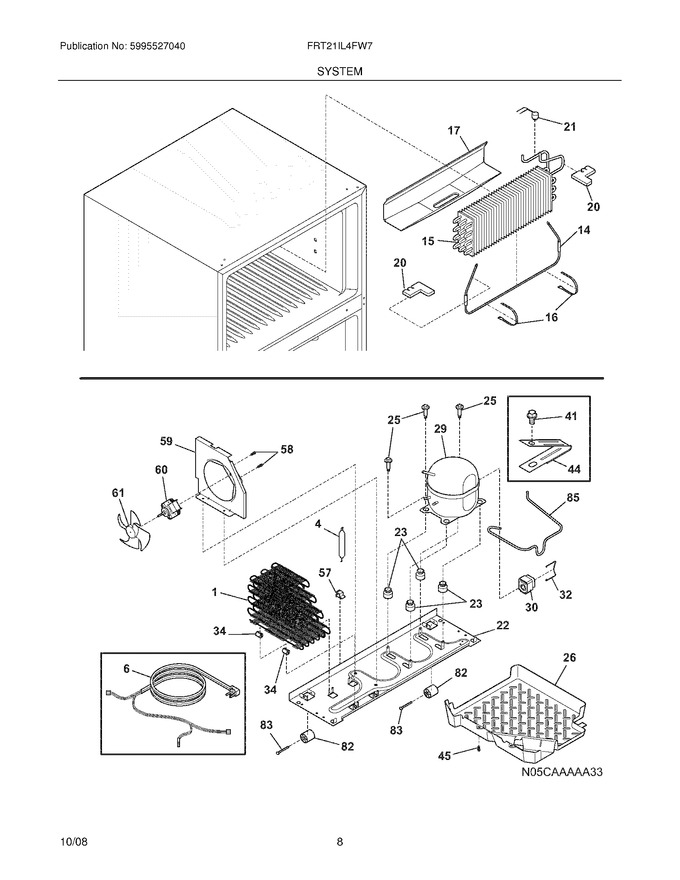

09 - System
11 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 66.47 | ||||
| 17 | 241801301 | Trough-drain |
|
$ 71.62 | |||||
| 20 | 241551902 | Insulation Block |
|
$ 12.60 | |||||
| 22 | 241602010 | Base-compressor |
|
- | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 47.25 | |||||
| 25 | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
$ 13.95 | |||||
| 26 | 241697603 | Pan-defrost (Replaces: 241637401) |
|
$ 88.02 | |||||
| 32 | 241941901 | Clamp,elec Cont Mtg ,compressor |
|
- | |||||
| 34 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 22.05 | |||||
| 41 | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 240555002 | Screw,hex Washer Head ,8-32 X 0.375 (Replaces: 218897004) |
|
Immediately | $ 14.96 | ||||
| 59 | 5303918774 | Shroud-cond Fan (Replaces: 241681101) |
|
Immediately | $ 207.00 | ||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 57.30 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin |
|
Immediately | $ 39.27 | ||||
| 85 | 241871501 | Tube-connector,suction |
|
$ 42.53 | |||||
| F1 | 241965001 | Condenser,dynamic |
|
- | |||||
| F14 | 240356217 | Heater-defrost |
|
Immediately | $ 121.28 | ||||
| F15 | 5303918274 | Evaporator Kit |
|
Immediately | $ 470.74 | ||||
| F21 | 5303918202 | Thermostat-defrost,kit |
|
Immediately | $ 22.46 | ||||
| F29 | 5304507765 | Compressor Kit (Replaces: 5303918397) |
|
Immediately | $ 752.48 | ||||
| F30 | 241932402 | Starter-ptc |
|
- | |||||
| F4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 35.19 | ||||
| F6 | 241872701 | Harness-wiring,machine Compt (Replaces: 241607001) |
|
$ 136.24 | |||||
| F60 | 241696606 | Motor-condenser Fan (Replaces: 241696602) |
|
Immediately | $ 204.23 | ||||
| F61 | 240524102 | Fan Blade,galv Steel ,condenser Fan (Replaces: 240524101) |
|
Immediately | $ 43.81 | ||||
| FNI | 5304421289 | Hot Tube Repair Kit,service |
|
$ 537.60 | |||||
| FNI | 5303918330 | Heat Exchanger Kit,suction Line ,service |
|
$ 372.33 | |||||
| FNI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 21.26 | |||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 7.09 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| NI | 240346701 | Tape-foam Seal,shroud |
|
$ 33.08 | |||||
| NI | 240359403 | Screw-fan Shroud,(2) |
|
$ 4.21 |
