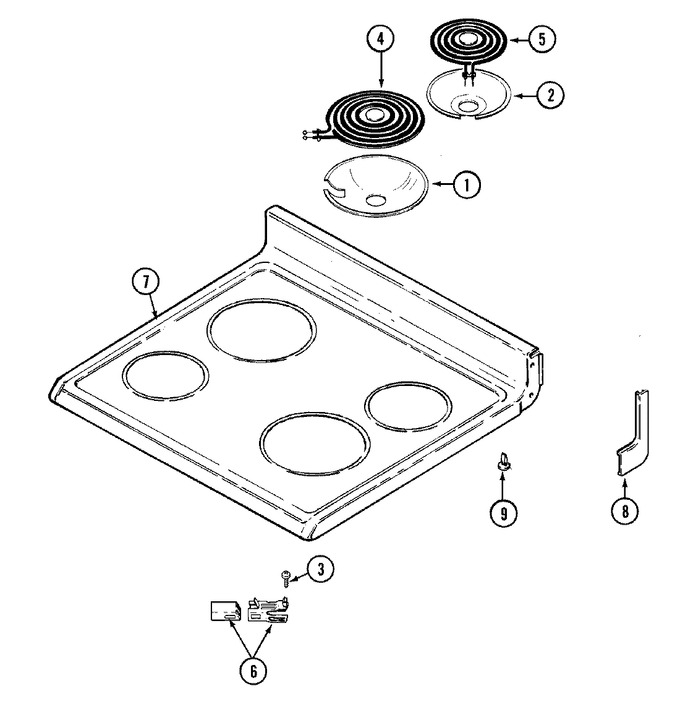

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10290350 | Bowl, Drip (8`` Blk) (Replaces: Y04100393) | 19 |
|
Immediately | $ 16.94 | |||
| 2 | W10290353RW | Bowl, Drip (6``w/hole-blk) (Replaces: 7725P040-60) | 19 |
|
Immediately | $ 21.41 | |||
| 2 | W10290353RW | Pan, Drip (6`` Solid) (Replaces: 74002961) | 19 |
|
Immediately | $ 21.41 | |||
| 3 | WP74004005 | Screw (Replaces: 7101P349-60) | 19 |
|
$ 8.66 | ||||
| 4 | WP12001560 | Element, Surface (8``) (Replaces: 74001774) | 19 |
|
$ 200.87 | ||||
| 5 | WPW10259868 | Element, Surface (6``) (Replaces: 74001776) | 19 |
|
Immediately | $ 124.76 | |||
| 6 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 19 |
|
Immediately | $ 31.61 | |||
| 7 | 2002W103-09 | Top, Main (blk) | 19 |
|
- | ||||
| 8 | 7746P031-60 | End Cap (lt-blk) | 19 |
|
$ 26.25 | ||||
| 8 | WP3195558 | Nut, Push On (Replaces: 74002563) | 19 |
|
$ 8.96 | ||||
| 8 | 7746P030-60 | End Cap (rt-blk) | 19 |
|
$ 26.16 | ||||
| 9 | 8016P015-60 | Glide | 19 |
|
$ 5.65 |
