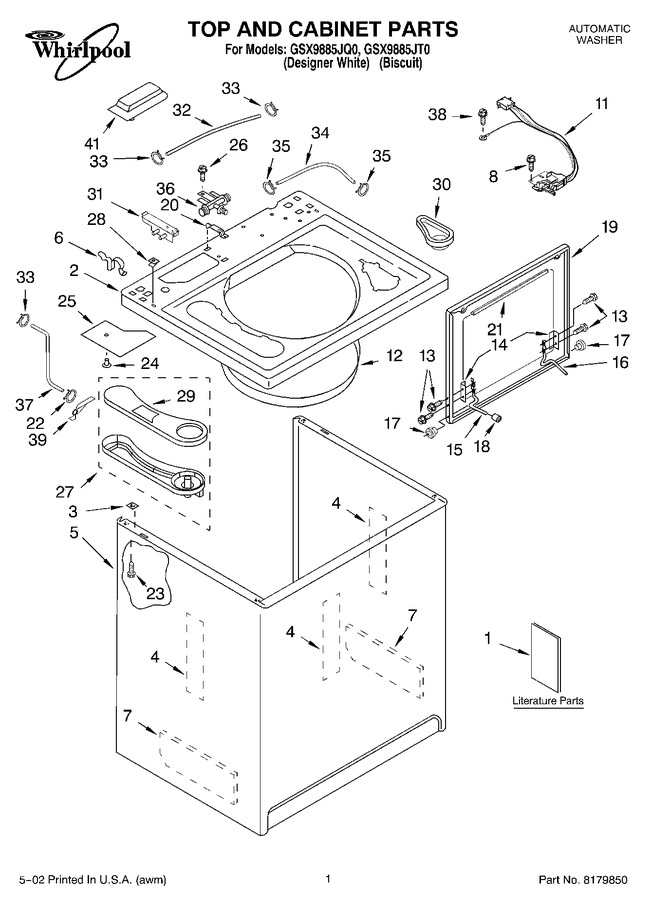

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3954861 | Use & Care Guide (energy Guide) |
|
- | |||||
| 1 | LIT8522270 | Use & Care Guide (wiring Diagram) |
|
- | |||||
| 1 | LIT3954818 | Use & Care Guide (french) |
|
- | |||||
| 1 | LIT3953949 | Use & Care Guide (english) |
|
- | |||||
| 1 | N/A | Literature Parts |
|
- | |||||
| 1 | LIT3952817 | Installation Instructions (english) |
|
- | |||||
| 1 | LIT3954914 | Installation Instructions (tech Sheet) |
|
- | |||||
| 1 | LIT3951578 | Installation Instructions (french) |
|
- | |||||
| 2 | 8274365 | Top (white) |
|
- | |||||
| 2 | 8274367 | Top (biscuit) |
|
- | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (Replaces: 62750) |
|
Immediately | $ 8.07 | ||||
| 4 | 3976348 | Cabinet - Sound Damper |
|
$ 37.92 | |||||
| 5 | 3954358 | Cabinet (biscuit) |
|
- | |||||
| 5 | 8280604 | Cabinet (white) |
|
- | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 8.19 | ||||
| 7 | 8054736 | Cabinet-sound Absorber |
|
- | |||||
| 8 | 3400611 | Screw, Lid Switch |
|
- | |||||
| 11 | WP8054980 | Switch, Lid (Replaces: 8054980) |
|
Immediately | $ 154.77 | ||||
| 12 | 8271956 | Splash Shield Assembly |
|
$ 61.36 | |||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 355274) |
|
Immediately | $ 7.55 | ||||
| 14 | WP21097 | Pad, Hinge (Replaces: 21097) |
|
$ 8.19 | |||||
| 15 | 8055257 | Hinge, Lid (left) |
|
$ 6.31 | |||||
| 16 | 8055256 | Hinge, Lid (right) |
|
$ 23.30 | |||||
| 17 | 8319539 | Bearing, Lid Hinge (2) |
|
$ 5.51 | |||||
| 18 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 19 | 8274364 | Lid (biscuit) |
|
- | |||||
| 19 | 8274362 | Lid (white) |
|
- | |||||
| 20 | 357144 | Clip, Wire |
|
- | |||||
| 21 | 8054939 | Seal, Lid |
|
$ 50.57 | |||||
| 22 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 23 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 8.25 | |||||
| 24 | 8280537 | Rivet, Shield |
|
- | |||||
| 25 | 8272149 | Shield, Spill |
|
- | |||||
| 26 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 27 | WP8055237 | Dispenser, Bleach & Fabric Softener (Replaces: 8055237) |
|
$ 86.22 | |||||
| 28 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 7.76 | |||||
| 29 | 8272009 | Cover, Dispenser |
|
- | |||||
| 30 | 8055238 | Dispenser, Detergent |
|
- | |||||
| 31 | 8055243 | Connector, 2-port |
|
- | |||||
| 32 | 8055266 | Hose, Fabric Softener |
|
$ 21.29 | |||||
| 33 | WP596669 | Clamp, Hose (Replaces: 371506) |
|
Immediately | $ 8.82 | ||||
| 34 | 8055267 | Hose, Detergent |
|
- | |||||
| 35 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 36 | 8272010 | Connector, Venturi |
|
- | |||||
| 37 | WP8283537 | Hose, Bleach (Replaces: 8283537) |
|
$ 32.16 | |||||
| 38 | 3400073 | Screw |
|
- | |||||
| 39 | 8271943 | Restraint |
|
- | |||||
| 41 | 8055247 | Cover, Hose Disconnect |
|
- | |||||
| LIT4313896 | Manual, (washer) Do-it-yourself |
|
- |
