SELECT A DIAGRAM

01 - Cabinet

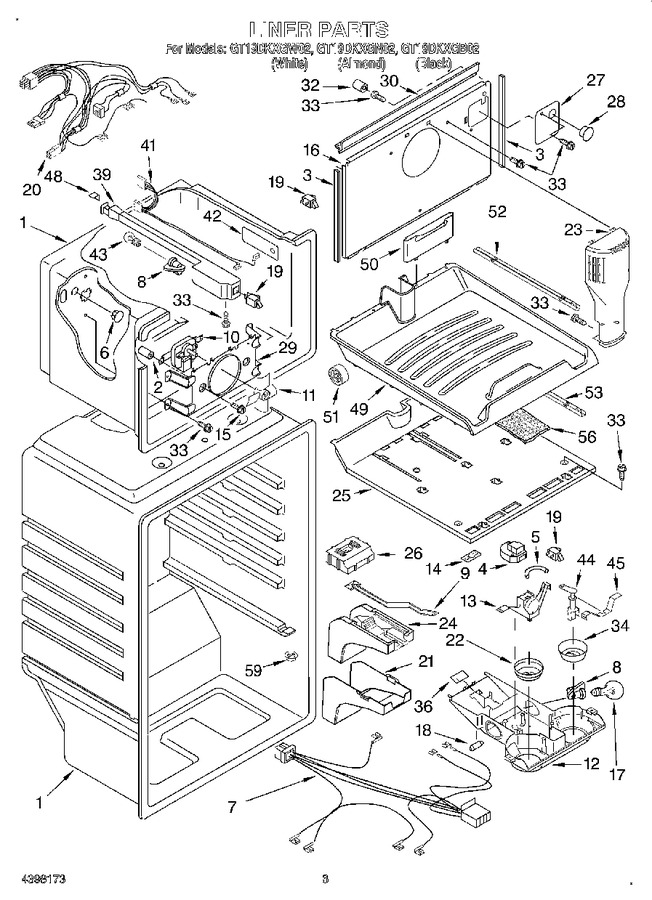

02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (side)   (Replaces: 2189268)				$ 25.31
4	2199008		Timer, Defrost		Appelez-nous	-
5	WP2196003		Thermostat Tube Barrier   (Replaces: 549512)				$ 7.52
6	940014		Hole Plug				$ 18.33
7	2200632		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 104.10
9	2179858		Damper, Air		Appelez-nous	-
10	2183448		Fan Motor		Appelez-nous	-
11	WP2163777		Blade, Fan   (Replaces: 2163777)			Immediately	$ 96.85
12	2200820		Control Box		Appelez-nous	-
13	2200830		Thermostat Assembly (includes Items 5, 18, & 36)		Appelez-nous	-
14	2176341		Clip, Defrost Timer		Appelez-nous	-
15	489412		Screw		Appelez-nous	-
16	2183152		Cover, Evaporator		Appelez-nous	-
17	8009		Light Bulb (2)   (Replaces: 527949)			Immediately	$ 16.80
18	2200831		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm (2) Switch   (Replaces: 1118894)			Immediately	$ 35.18
20	2200630		Wire Assembly, Freezer Compartment		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	W10829461		Knob, Thermostat   (Replaces: 2200863)				$ 28.72
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 117.93
25	2190590		Freezer Floor		Appelez-nous	-
26	2200793		Air Diffuser, Top (includes Item 37)				$ 77.46
27	WP2217784		Cover, Hole   (Replaces: 2190688)				$ 42.50
28	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.23
29	2198901		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2189267)				$ 25.31
32	WP487996		Cap   (Replaces: 487996)				$ 7.80
33	WP489478		Screw   (Replaces: 489478)				$ 7.36
34	2176297		Knob, Damper		Appelez-nous	-
36	WP2205079		Seal, Rear Thermostat   (Replaces: 2172532)				$ 9.01
39	2182382		Housing Base		Appelez-nous	-
41	2198891		Wire Harness, Freezer Light		Appelez-nous	-
42	2193491		Electrical Shield, Freezer Light				$ 5.81
43	4396822		Bulb, Light   (Replaces: 850166)			Immediately	$ 12.22
44	2179859		Post, Damper		Appelez-nous	-
45	2163810		Bracket, Damper Knob				$ 6.01
48	2166284		Gasket, Rear				$ 6.06
49	2201045		Pullout, Freezer Floor (includes Item 56)		Appelez-nous	-
50	2198768		Rear Fence Pull-out Freezer Floor				$ 35.55
51	2176246		Roller, Slide		Appelez-nous	-
52	2179713		Side Support, Floor Assembly		Appelez-nous	-
53	2179714		Center Support, Floor Assembly		Appelez-nous	-
56	2179772		Insulation, Freezer Floor		Appelez-nous	-
59	WP2210509		Valve, Release   (Replaces: 2171931)				$ 89.24

    View Diagram in Separate Window       Print Part List
