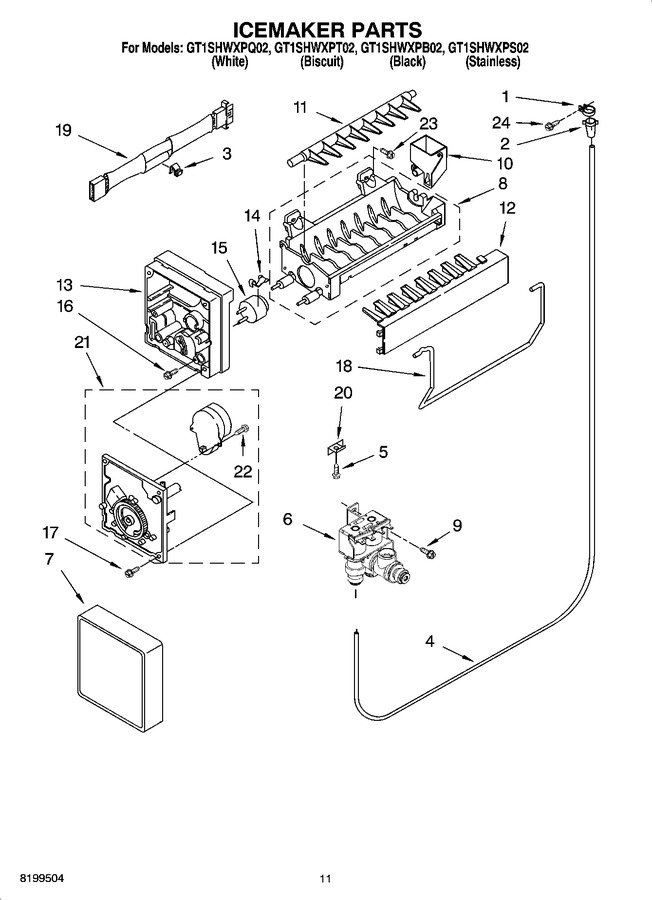

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 11.60 | |||||
| 2 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.84 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 4 | W10823511 | Tube, Water (Replaces: 2210514) |
|
Immediately | $ 32.41 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 6 | WP2188808 | Valve (double) Solenoid (Replaces: 2188808) |
|
Immediately | $ 158.82 | ||||
| 7 | WPW10289690 | Cover (Replaces: 2210484) |
|
Immediately | $ 8.40 | ||||
| 8 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Silicone Grease) (Replaces: 628228) |
|
$ 233.15 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 10 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 11 | WP627843 | Ejector (Replaces: 2194711) |
|
$ 83.60 | |||||
| 12 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 11.05 | |||||
| 15 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 627985) |
|
$ 109.18 | |||||
| 16 | 8533917 | Screw |
|
$ 13.37 | |||||
| 17 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 18 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 84.53 | |||||
| 19 | WP2187464 | Harness, Wiring (Replaces: 2187464) |
|
$ 124.57 | |||||
| 20 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 32.17 | ||||
| 21 | W10190935 | Module Assembly (includes Item 22) (Replaces: 626680) |
|
Immediately | $ 110.07 | ||||
| 22 | 489136 | Screw |
|
$ 10.29 | |||||
| 23 | WP488163 | Screw, 8 X 13/16 (Replaces: 488208) |
|
$ 7.54 | |||||
| 24 | WP488787 | Screw, (8-18 X 1/2) (Replaces: 488886) |
|
$ 10.58 | |||||
| 99 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 188.95 |
