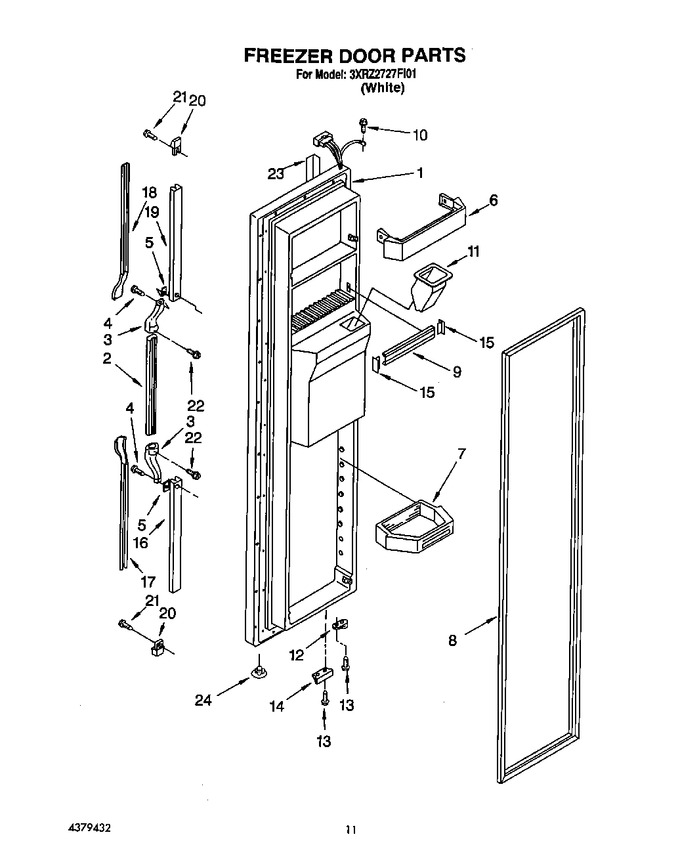

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2167455		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	1118417		Handle, Center		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2167390		Trivet, Door Shelf		Appelez-nous	-
7	2167389		Shelf Bin (2)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)   (Replaces: 2159078)				$ 310.19
9	2167391		Trim, Door Shelf		Appelez-nous	-
10	WP488234		Screw   (Replaces: 489422)				$ 6.74
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2155313)			Immediately	$ 27.36
13	WP999367		Screw   (Replaces: 489367)				$ 7.86
14	2155332		Bracket, Door Stop		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
16	1119360		Retainer, Insert		Appelez-nous	-
17	1118437		Insert, Handle		Appelez-nous	-
18	1118435		Insert, Handle		Appelez-nous	-
19	1119372		Retainer, Insert		Appelez-nous	-
20	2156220		End Cap (2)		Appelez-nous	-
21	489075		Screw		Appelez-nous	-
22	489022		Screw		Appelez-nous	-
23	1119062		Trim, Door		Appelez-nous	-
24	2151653		Hole Plug		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
