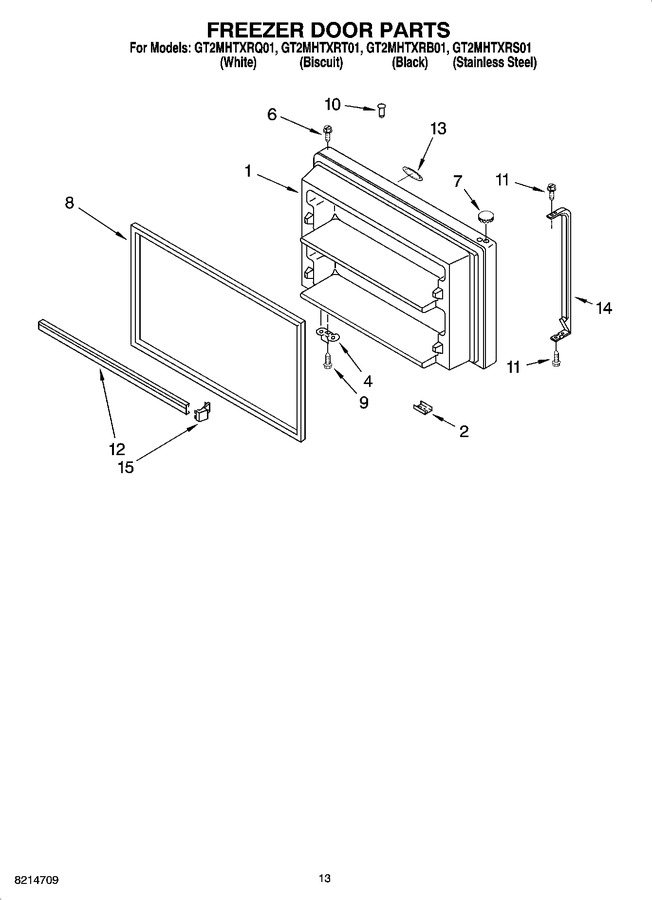

07 - Freezer Door Parts
08 - Water Dispenser Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2200621 | Freezer Door (includes Illus. 2,8 & 10) (black) |
|
- | |||||
| 1 | 2218678 | Freezer Door (includes Illus. 2,8 & 10) (stainless Steel) |
|
- | |||||
| 1 | 2183862 | Freezer Door (includes Illus. 2,8 & 10) (white) |
|
- | |||||
| 1 | 2200928 | Freezer Door (includes Illus. 2,8 & 10) (biscuit) |
|
- | |||||
| 2 | 2183000 | Tap Plate |
|
$ 36.19 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 6 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 7 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 23.06 | |||||
| 7 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.61 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 8 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 320.01 | |||||
| 8 | 2177310 | Door Gasket,magnetic (black) (Replaces: 2214969) |
|
$ 319.34 | |||||
| 9 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 10 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 11 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 12 | 2195947 | Trim, Door Shelf (2) |
|
$ 50.94 | |||||
| 13 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 14 | 4388950 | Handle (black) (Replaces: 2213111B) |
|
$ 224.58 | |||||
| 14 | 4388947 | Handle (white) (Replaces: 2213111W) |
|
$ 194.73 | |||||
| 14 | 2213111T | Handle (biscuit) |
|
- | |||||
| 15 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 12.55 |
