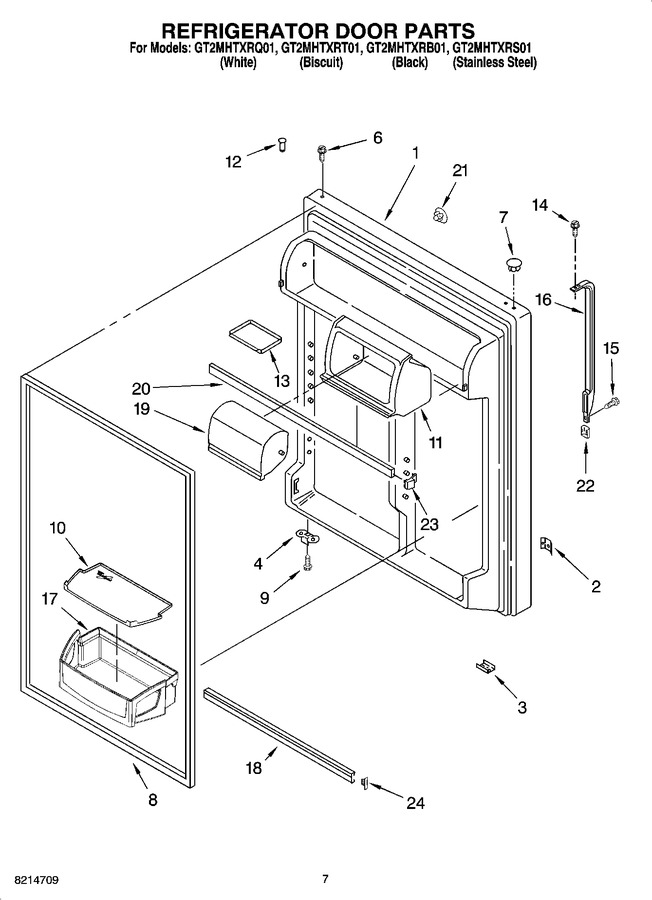

04 - Refrigerator Door Parts
05 - Unit Parts
06 - Icemaker Parts
07 - Freezer Door Parts
08 - Water Dispenser Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2200615 | Refrigerator Door (includes Illus. 2,3,8 & 12) (black) |
|
- | |||||
| 1 | 2218679 | Refrigerator Door (includes Illus. 2,3,8 & 12) (stainless Steel) |
|
- | |||||
| 1 | 2183868 | Refrigerator Door (includes Illus. 2,3,8 & 12) (white) |
|
- | |||||
| 1 | 2204905 | Refrigerator Door (includes Illus. 2,3,8 & 12) (biscuit) |
|
- | |||||
| 2 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.50 | |||||
| 3 | 2183000 | Tap Plate |
|
$ 36.19 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 6 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 7 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.61 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 7 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 23.06 | |||||
| 8 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 8 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 315.19 | |||||
| 9 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 10 | 2300431 | Rubber Mat (3) |
|
- | |||||
| 11 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 12 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 13 | 2195388 | Tray, Door |
|
- | |||||
| 14 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 15 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.56 | |||||
| 16 | 4388950 | Handle (black) (Replaces: 2213112B) |
|
$ 224.58 | |||||
| 16 | 2213112T | Handle (biscuit) |
|
- | |||||
| 16 | 4388947 | Handle (white) (Replaces: 2213112W) |
|
$ 194.73 | |||||
| 17 | 2300425 | Bin, Door Shelf (3) |
|
- | |||||
| 18 | WPW10421486 | Trim, Door Shelf (Replaces: 2195948) |
|
$ 109.28 | |||||
| 19 | 2218109 | Door, Compartment |
|
$ 33.66 | |||||
| 20 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 21 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 7.25 | |||||
| 21 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 21 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 7.59 | |||||
| 22 | WP2193353W | Handle, Trim (white) (Replaces: 2193353W) |
|
$ 8.11 | |||||
| 22 | 2193353T | Handle, Trim (biscuit) |
|
- | |||||
| 22 | 2193353B | Handle, Trim (black) |
|
$ 5.85 | |||||
| 23 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 24 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 |
