SELECT A DIAGRAM

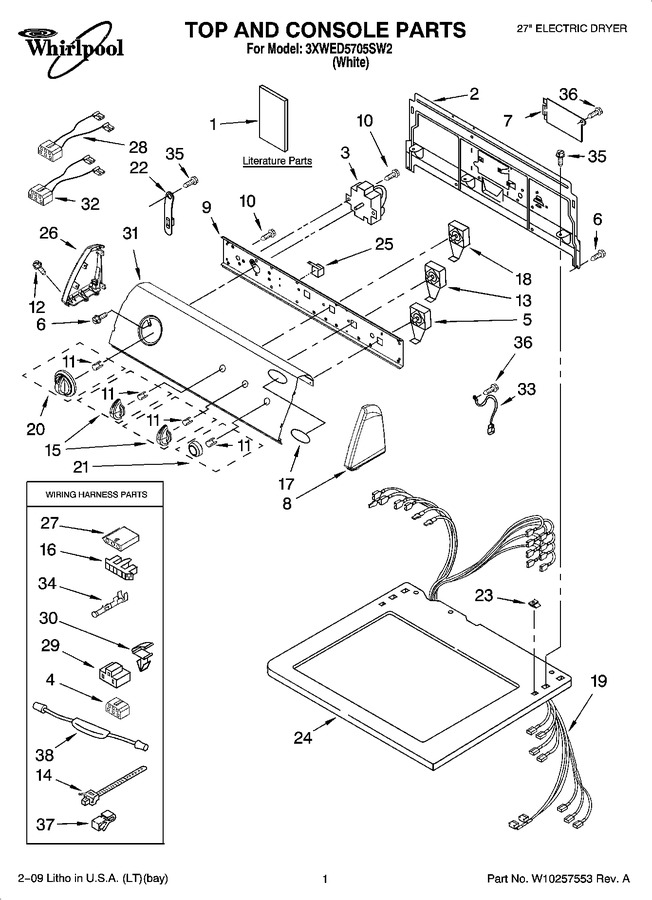

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	W10131645		Guide, Use & Care		Appelez-nous	-
1	W10115524		Instructions, Installation		Appelez-nous	-
1	W10241045		Wiring Diagram		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 248.97
3	WPW10116281		Timer   (Replaces: 8299769)				$ 310.68
4	3347243		Connector 6-circuit		Appelez-nous	-
5	WPW10112633		Switch, Push-to-start   (Replaces: W10112633)				$ 128.85
6	3400859		Screw, 8-18 X 3/8   (Replaces: 8533951)				$ 13.22
7	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
8	8271363		Cap, End (r.h.)		Appelez-nous	-
9	8544897		Bracket, Control		Appelez-nous	-
10	3400859		Screw, 8-18 X 5/16   (Replaces: 8533951)				$ 13.22
11	WP8536939		Spring Clip   (Replaces: 8536939)			Immediately	$ 7.81
12	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
13	W10168170		Switch, Temperature				$ 196.84
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
15	W10034380		Knob, Control				$ 25.06
16	3397269		Connector, Timer				$ 25.55
17	3955775		Badge		Appelez-nous	-
18	W11235848		Switch, Temperature   (Replaces: W10168168)		Appelez-nous	-
19	W10242812		Harness, Wiring		Appelez-nous	-
20	W10034750		Timer Knob Assembly				$ 28.27
21	WPW10034790		Knob, Push-to-start   (Replaces: W10034790)				$ 55.06
22	WP8568314		Strap, Console   (Replaces: 8318255)				$ 7.78
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	8271399		Top		Appelez-nous	-
25	8522378		Mini-buzzer		Appelez-nous	-
26	8271369		Cap, End (l.h.)		Appelez-nous	-
27	3936144		Connector				$ 20.21
28	W10128691		Wire, Jumper (gaurd/on-off)		Appelez-nous	-
29	3401144		Connector, (pts Relay)				$ 12.20
30	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
31	W10095950		Panel, Control				$ 180.58
32	W10128690		Wire, Jumper Assembly		Appelez-nous	-
33	3398893		Wire, Ground		Appelez-nous	-
34	WP94614		Terminal   (Replaces: 94614)				$ 7.67
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
36	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
37	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
38	279872		Resistor, Assembly   (Replaces: 8283170)				$ 74.94

    View Diagram in Separate Window       Print Part List
