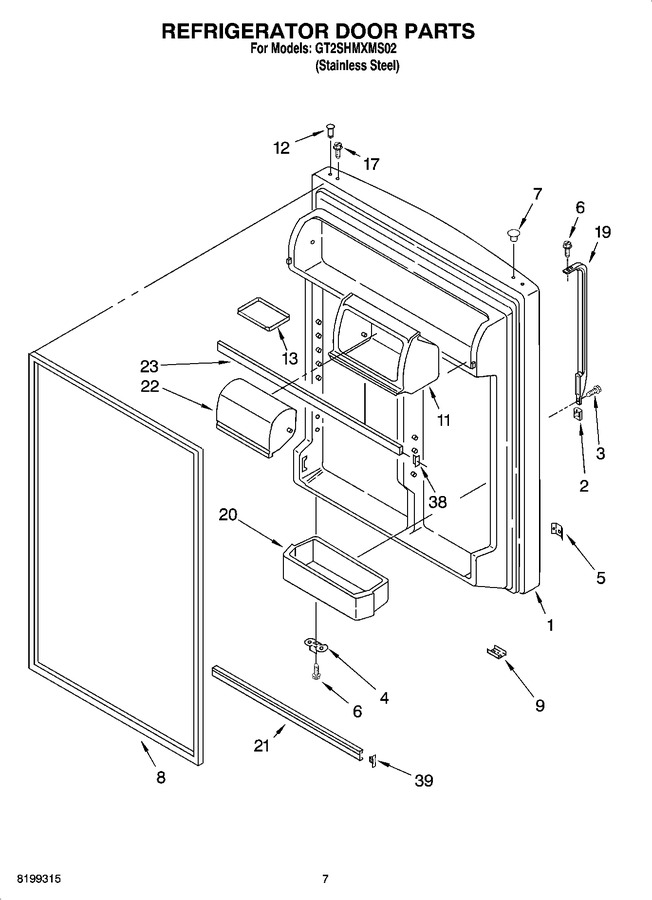

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2218679 | Refrigerator Door (includes Illus. 5,8,9 & 12) |
|
- | |||||
| 2 | 2193353B | Handle, Trim |
|
$ 5.85 | |||||
| 3 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 8.18 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 6 | WP489357 | Screw, 8-18 X 3/4 (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 7 | WP2212651 | Hole Plug Hinge Sleeve (Replaces: 2212651) |
|
$ 24.21 | |||||
| 8 | 2177311 | Door Gasket, Magnetic (Replaces: 2202882) |
|
$ 330.95 | |||||
| 9 | 2183000 | Tap Plate |
|
$ 36.19 | |||||
| 11 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 12 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 13 | 2195388 | Tray, Door |
|
- | |||||
| 17 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 19 | 4388950 | Handle (Replaces: 2213112B) |
|
$ 235.81 | |||||
| 20 | WP2204813 | Bin, Door Shelf (3) (Replaces: 2179606) |
|
Immediately | $ 81.20 | ||||
| 21 | WPW10421486 | Trim, Door Shelf (Replaces: 2195948) |
|
$ 114.74 | |||||
| 22 | 2218109 | Door, Compartment |
|
$ 33.66 | |||||
| 23 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 38 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 39 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 |
