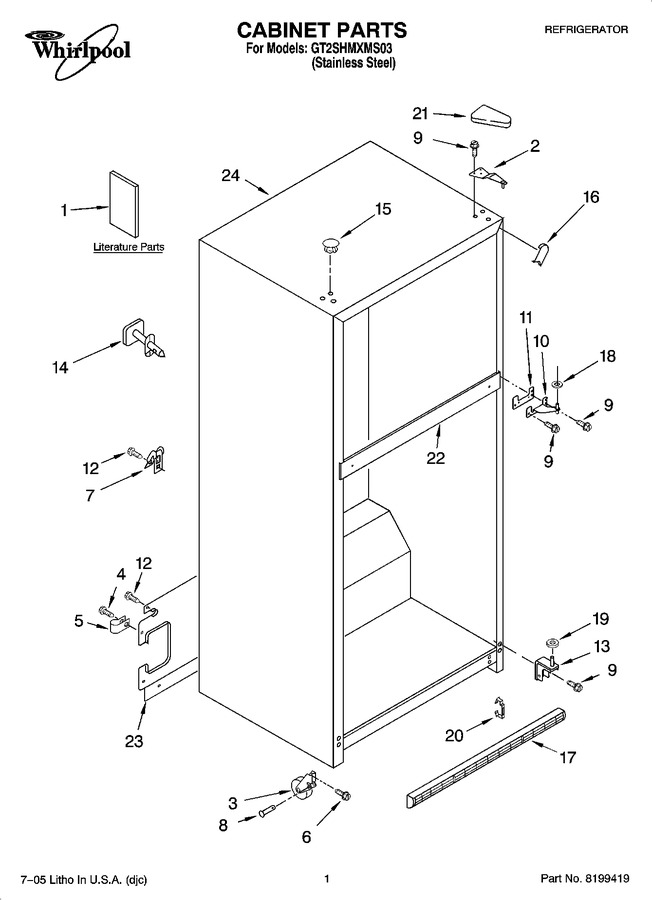

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2225413 | Customer Instruct Sheet |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | 2225623 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2314274 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2302187 | Energy Label |
|
- | |||||
| 1 | 2302037 | Use & Care Guide |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 99.45 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.83 | ||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 11.18 | |||||
| 6 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.19 | |||||
| 7 | 549193 | Clamp-cord |
|
$ 14.06 | |||||
| 8 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 9 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 10 | WP2254618 | Hinge, Center (Replaces: 2183972) |
|
Immediately | $ 87.64 | ||||
| 11 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 10.89 | |||||
| 12 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 13 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.47 | |||||
| 14 | N/A | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 15 | WP2183998 | Hole Plug (6) (Replaces: 2183998) |
|
$ 18.10 | |||||
| 16 | W11252732 | Corner Filler (2) (Replaces: 2201017) |
|
$ 12.45 | |||||
| 17 | 2254315 | Grille (includes Illus. 20) |
|
$ 41.54 | |||||
| 18 | WP489467 | Washer-plain (Replaces: 489341) |
|
Immediately | $ 10.88 | ||||
| 19 | WP487576 | Washer-nylon (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 20 | 2189356 | Clip-grille (2) |
|
$ 5.70 | |||||
| 21 | WP2213363 | Cover, Hinge (Replaces: 2213363) |
|
Immediately | $ 18.21 | ||||
| 22 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 23 | 2302358 | Cover, Unit |
|
$ 57.60 | |||||
| 24 | N/A | Cabinet (not A Serviceable Part) |
|
- |
