Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8539387 Dishrack, Upper Appelez-nous -
2 WP8268807 Mount, Wheel   (Replaces: 8268807) In-Stock Immediately $ 13.51

3 WP3385089 Track Rack   (Replaces: 3385089) In-Stock Immediately $ 80.00

4 WP8565925 Stop, Track   (Replaces: 8524581) In-Stock Immediately $ 6.87

5 8268815 Clip, No Flip Special Order $ 23.69

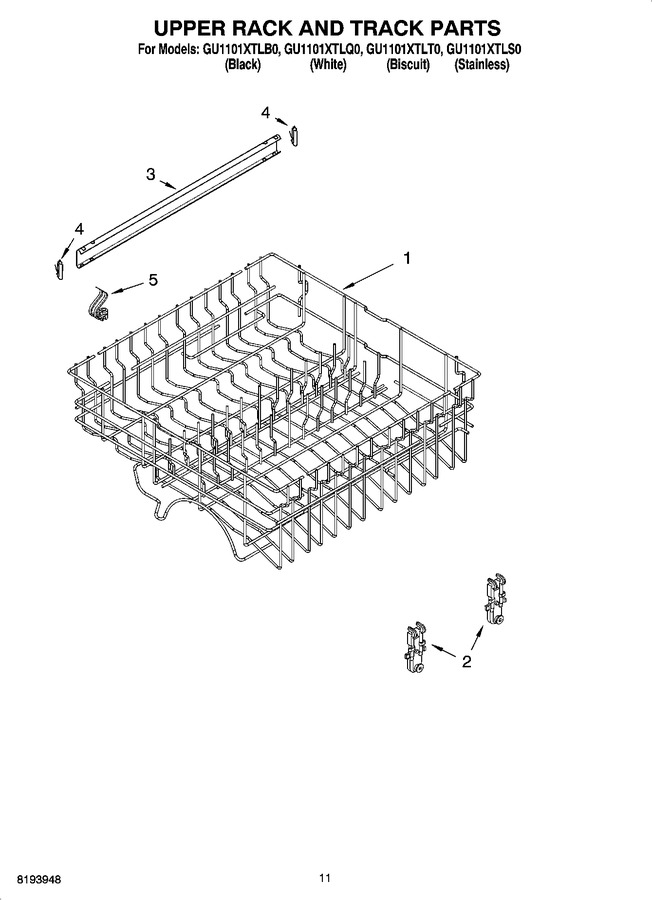

    View Diagram in Separate Window     Print Icon   Print Part List
