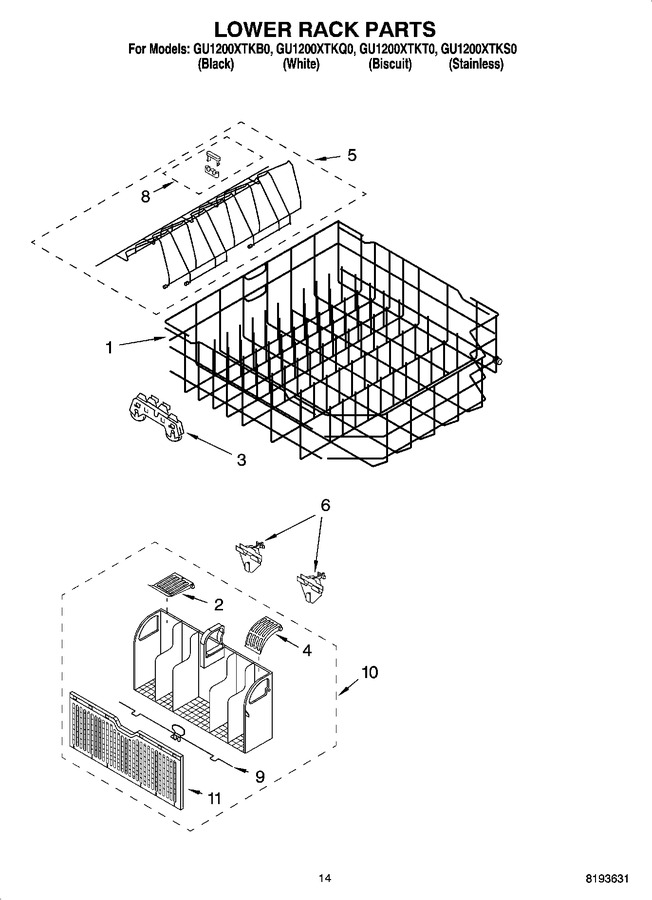

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10311986		Lower Rack Assembly (includes Item 3)   (Replaces: 8268709)			Immediately	$ 188.14
2	8269302		Lid, Small Items		Appelez-nous	-
3	WP8268645		Wheel & Transport Assembly   (Replaces: 8268645)			Immediately	$ 62.31
4	8269303		Cover, Small Items		Appelez-nous	-
5	661648		Holder, Plate		Appelez-nous	-
6	8269308		Clip, Silverware Basket				$ 89.69
8	3377426		Clip, Plate Holder		Appelez-nous	-
9	8269305		Latch Assembly		Appelez-nous	-
10	8269307		Silverware Basket Assembly				$ 70.82
11	8269304		Door, Silverware Basket		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	N/A		Anti-tip Kit		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 57.04
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	4317824		Power Cord Kit (includes Powercord & Misc.hardware)			Immediately	$ 19.77
	4396194		Floor Mount Kit				$ 44.03

    View Diagram in Separate Window       Print Part List
