Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10311986 Lower Rack Assembly (includes Item 3)   (Replaces: 8268709) In-Stock Immediately $ 188.14

2 8269302 Lid, Small Items Appelez-nous -
3 WP8268645 Wheel & Transport Assembly   (Replaces: 8268645) In-Stock Immediately $ 62.31

4 8269303 Cover, Small Items Appelez-nous -
5 661648 Holder, Plate Appelez-nous -
6 8269308 Clip, Silverware Basket Special Order $ 89.69

8 3377426 Clip, Plate Holder Appelez-nous -
9 8269305 Latch Assembly Appelez-nous -
10 8269307 Silverware Basket Assembly Special Order $ 70.82

11 8269304 Door, Silverware Basket Appelez-nous -
N/A Anti-tip Kit Appelez-nous -
72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

4392900 Paint, Bulk (1 Qt.) (biscuit) (uncut) Appelez-nous -
4317824 Power Cord Kit (includes Powercord & Misc.hardware) In-Stock Immediately $ 19.77

4396194 Floor Mount Kit Special Order $ 44.03

4392901 Paint, Pressurized Spray (12oz.) (biscuit) Appelez-nous -
8171656 Accessories Side Panel Kits (white) Special Order $ 418.17

8171657 Accessories Side Panel Kits (black) Special Order $ 625.77

8171658 Accessories Side Panel Kits (biscuit) Appelez-nous -
8171659 Accessories Side Panel Kits (stainless Steel Custom Panel Kits) Special Order $ 705.00

4396199 Custom Panel & Trim Kit (black) Appelez-nous -
72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

W10864081 Accessories Side Panel Kits (seal, Cabinet 0optional Parts (not Included))   (Replaces: 8269110) In-Stock Immediately $ 84.31

4396200 Accessories Side Panel Kits (white) Appelez-nous -
4396201 Accessories Side Panel Kits (biscuit Cabinet Seal Kit) Appelez-nous -
4392899 Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (biscuit) In-Stock Immediately $ 26.45

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21

285006 Paint, Pressurized Spray 12 Oz.) (superior Black) Special Order $ 57.04

799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46


    View Diagram in Separate Window     Print Icon   Print Part List

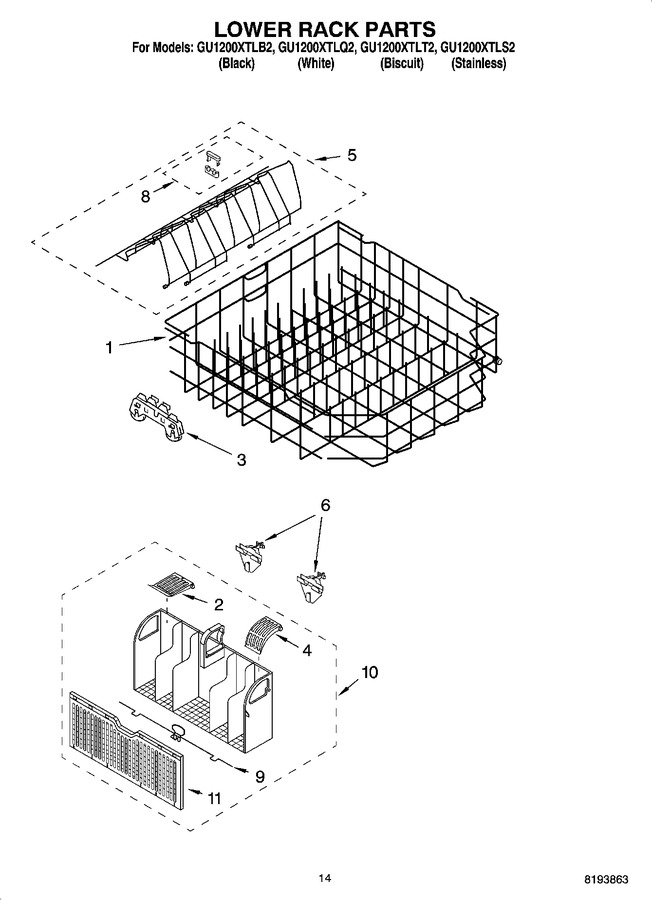

Diagram for GU1200XTLB2
