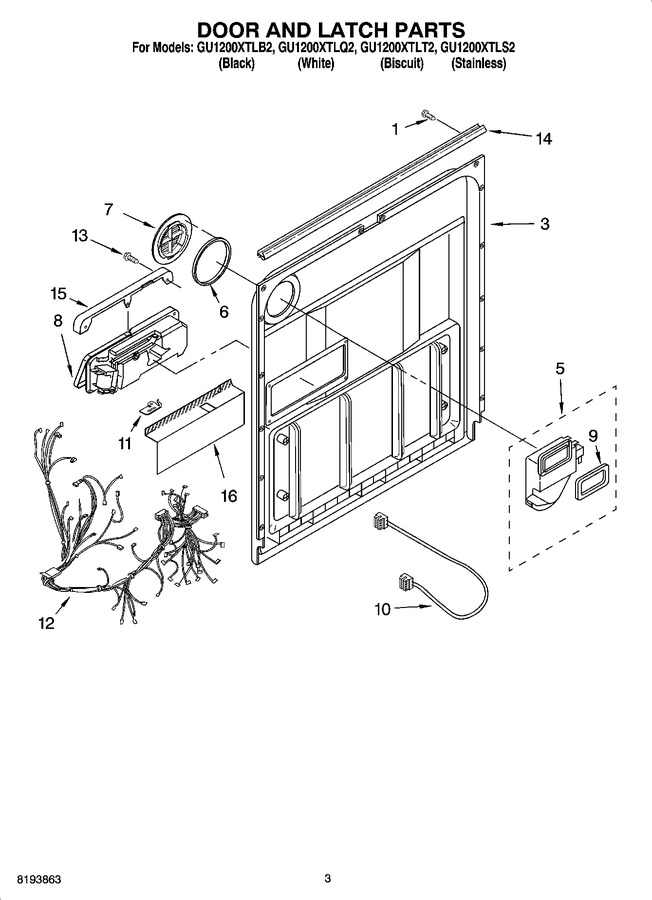

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 7.76
3	WP8269311		Inner Door (also Order Item 6)   (Replaces: 8269311)				$ 271.05
5	WP8545533		Vent Assembly, Active   (Replaces: 8545533)				$ 193.90
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WP8558991		Bezel-vent, Active (also Order Item 6)   (Replaces: 8545535)				$ 18.45
8	WP8558129		Dispenser, Assembly   (Replaces: 8270034)			Immediately	$ 79.69
9	WP8269258		Seal. Front   (Replaces: 8269258)			Immediately	$ 92.25
10	8269190		Dispenser, Wiring Harness				$ 36.73
11	WP8533381		Sensor, Rinse Aid   (Replaces: 8533381)				$ 76.90
12	8534931		Wiring Harness Main				$ 120.96
13	WPW10177098		Screw   (Replaces: 8281154)			Immediately	$ 7.64
14	WP8269296		Seal, Console/door   (Replaces: 8269296)			Immediately	$ 179.21
15	WPW10462232		Bracket, Dispenser   (Replaces: 8269743)				$ 36.04
16	8268541		Shield, Dispenser		Appelez-nous	-
