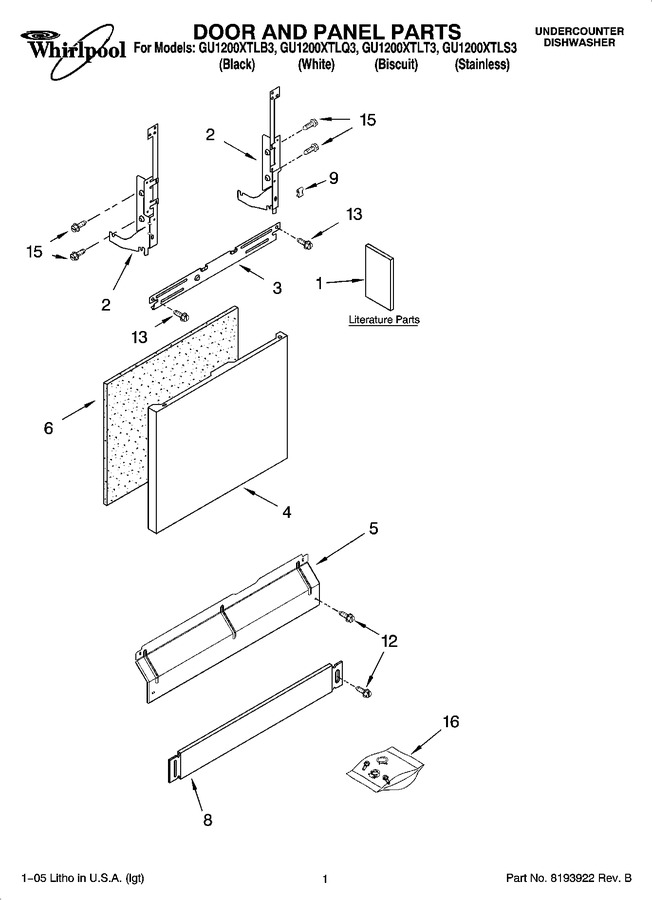

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8559083 | Literature Parts (energy Guide) |
|
- | |||||
| 1 | LIT8537797 | Literature Parts (english/french) |
|
- | |||||
| 1 | LIT8283509 | Literature Parts (guide, Use & Care Tech Sheet) |
|
- | |||||
| 1 | LIT8269550 | Instructions, Installation |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: 8534858) |
|
Immediately | $ 66.52 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: 8534857) |
|
Immediately | $ 78.37 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10301571 | Panel Front (black) (Replaces: 8269841) |
|
$ 357.77 | |||||
| 4 | W10384707 | Panel Front (biscuit) (Replaces: 8269844) |
|
$ 312.47 | |||||
| 4 | W10301577 | Panel Front (stainless) (Replaces: 8269845) |
|
$ 365.45 | |||||
| 4 | 8269842 | Panel Front (white) |
|
- | |||||
| 5 | W10871198 | Access Panel (biscuit) (Replaces: 8543836) |
|
$ 147.59 | |||||
| 5 | W11763736 | Access Panel (black) (Replaces: 8543834) |
|
Immediately | $ 38.79 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: 8543835) |
|
$ 162.80 | |||||
| 6 | WPW10073520 | Insulation, Door (Replaces: 8268580) |
|
$ 91.65 | |||||
| 8 | 8269001 | Toe Panel (biscuit) |
|
- | |||||
| 8 | WPW10586591 | Toe Panel (white) (Replaces: 8269000) |
|
$ 309.39 | |||||
| 8 | W10871196 | Toe Panel (black) (Replaces: 8268999) |
|
$ 165.75 | |||||
| 9 | 8269740 | Clip, Grounding |
|
$ 6.21 | |||||
| 12 | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 7.53 | |||||
| 12 | 3400865 | Screw (biscuit) |
|
$ 13.40 | |||||
| 12 | WP302868 | Screw Black (Replaces: 302868) |
|
Immediately | $ 7.75 | ||||
| 13 | WP681414 | Screw, (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 15 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.00 | ||||
| 16 | WPW10292170 | Miscellaneous Parts Bag (includes 2 Screws &2 Hose Clamps) (Replaces: 8269297) |
|
$ 92.28 |
