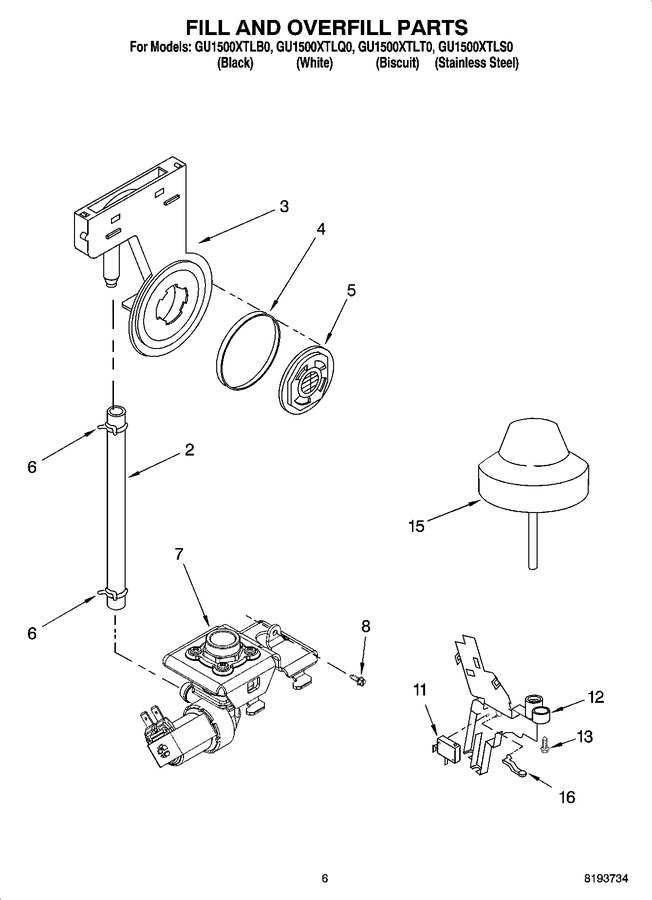

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP8269242 | Hose, Inlet (Replaces: 8269242) |
|
$ 104.64 | |||||
| 3 | 8269240 | Water Inlet Assembly (includes Items 4 & 5) |
|
- | |||||
| 4 | 8269241 | Gasket |
|
$ 7.70 | |||||
| 5 | 8269243 | Bezel, Inlet |
|
$ 33.84 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.40 | ||||
| 7 | WP8531669 | Fill Valve Assembly (Replaces: 8531670) |
|
Immediately | $ 72.43 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 11 | WP8268909 | Switch, Overfill Control (Replaces: 8268909) |
|
$ 78.15 | |||||
| 12 | WPW10175383 | Standpipe, Overfill (Replaces: 8268893) |
|
$ 85.02 | |||||
| 13 | WP304231 | Screw, (Replaces: 304231) |
|
Immediately | $ 7.75 | ||||
| 15 | WP8268913 | Float & Retainer Assembly (Replaces: 8268913) |
|
Immediately | $ 103.77 | ||||
| 16 | WP8268892 | Lever, Overflow Switch (Replaces: 8268892) |
|
Immediately | $ 54.72 |
