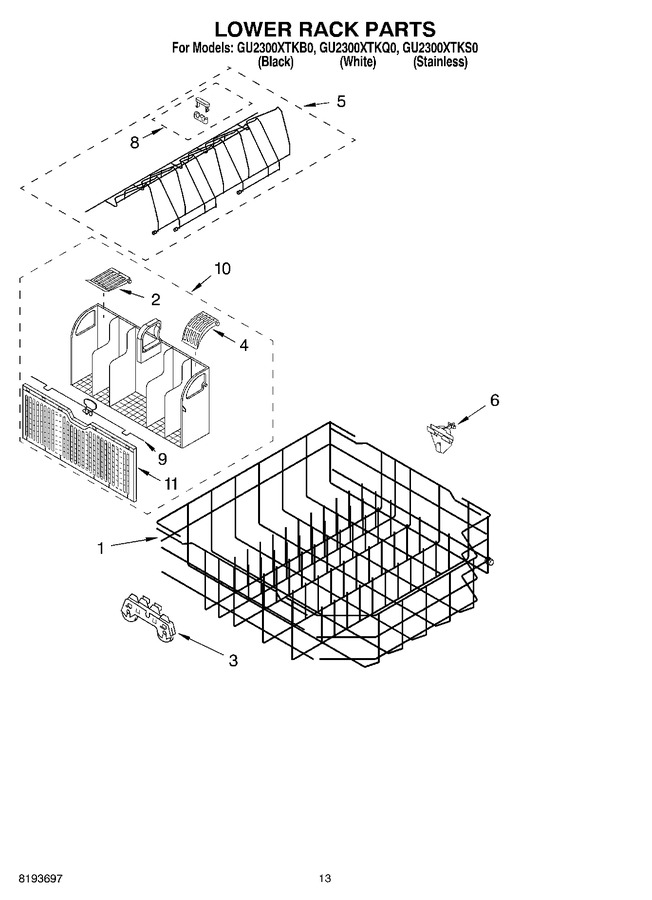

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10311986		Lower Rack Assembly (includes Item 3)   (Replaces: 8268709)			Immediately	$ 188.14
2	8269302		Lid, Small Items		Appelez-nous	-
3	WP8268645		Wheel & Transport Assembly   (Replaces: 8268645)			Immediately	$ 62.31
4	8269303		Cover, Small Items		Appelez-nous	-
5	661648		Holder, Plate		Appelez-nous	-
6	8269308		Clip, Silverware Basket				$ 94.17
8	3377426		Clip, Plate Holder		Appelez-nous	-
9	8269305		Latch Assembly		Appelez-nous	-
10	8269307		Silverware Basket Assembly				$ 70.82
11	8269304		Door, Silverware Basket		Appelez-nous	-
