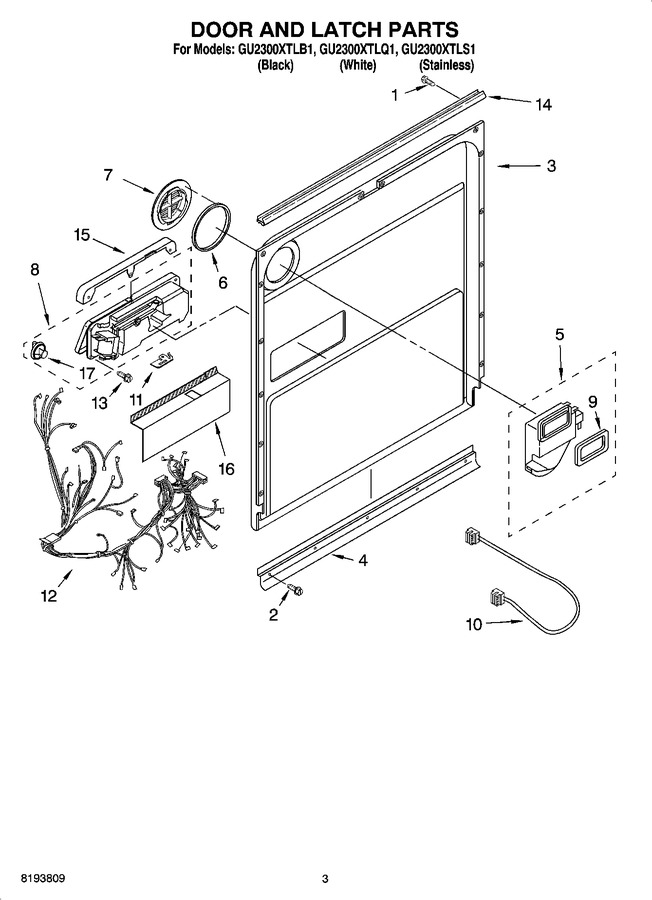

03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


12 - Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 7.76
2	W11631670		Screw   (Replaces: 8281217)				$ 14.02
3	8531026		Inner Door Mastic Assembly (also Order Item 6)		Appelez-nous	-
4	WP8268937		Inlet, Air   (Replaces: 8268937)			Immediately	$ 58.29
5	WP8545533		Vent Assembly (also Order   (Replaces: 8269251)				$ 193.90
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WP8545536		Deflector, Vent (also Order Item 6)   (Replaces: 8269260)				$ 79.32
8	WP8558129		Dispenser, Assembly   (Replaces: 8269996)			Immediately	$ 79.69
9	WP8269258		Seal. Front   (Replaces: 8269258)			Immediately	$ 92.25
10	8269190		Dispenser, Wiring Harness				$ 36.73
11	WP8533381		Sensor, Rinse Aid   (Replaces: 8533381)				$ 76.90
12	8534932		Wiring Harness Main				$ 120.77
13	WPW10177098		Screw (6)   (Replaces: 8281154)			Immediately	$ 7.64
14	WP8535660		Seal, Console/door   (Replaces: 8269143)				$ 177.15
15	WPW10462232		Bracket, Dispenser   (Replaces: 8269743)				$ 36.04
16	8268541		Shield, Dispenser		Appelez-nous	-
17	WP8533380		Cap, Rinse Aid   (Replaces: 8533380)				$ 26.58
