SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


12 - Miscellaneous Parts

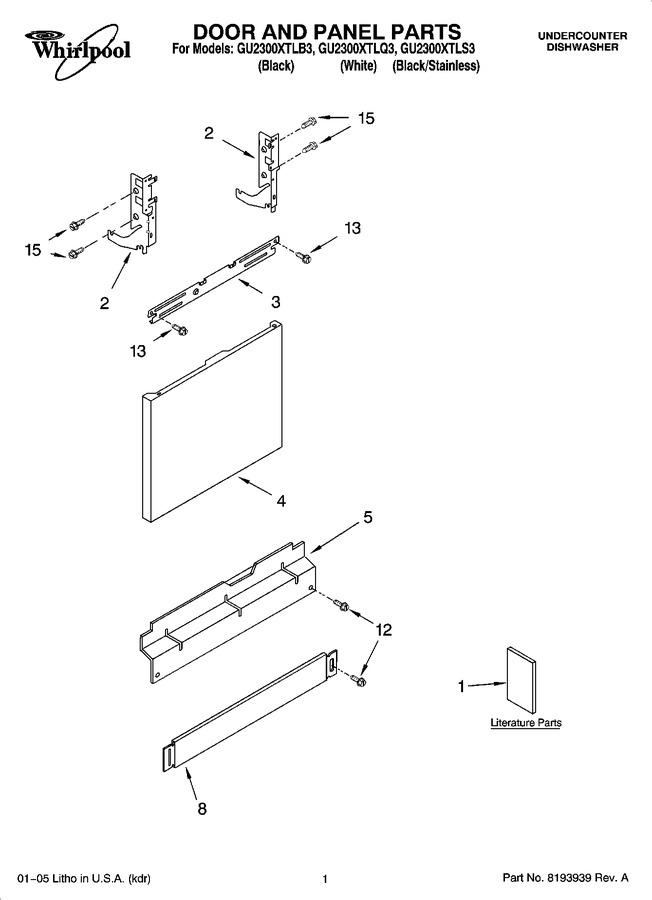

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8534868		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT8524511		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3381200		Literature Parts (guide, Use & Care Tech Sheet)		Appelez-nous	-
1	LIT8537797		Literature Parts (english/french)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	8269842		Panel Front (white)		Appelez-nous	-
4	W10301571		Panel Front (black)   (Replaces: 8269841)				$ 398.59
4	W10301577		Panel Front (stainless)   (Replaces: 8269845)				$ 399.50
5	WPW10441007		Access Panel (white)   (Replaces: 8543835)				$ 170.94
5	W11763736		Access Panel (black)   (Replaces: 8543834)			Immediately	$ 42.25
8	WPW10586591		Toe Panel (white)   (Replaces: 8269000)				$ 309.39
8	W10871196		Toe Panel (black)   (Replaces: 8268999)				$ 174.04
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 8.26

    View Diagram in Separate Window       Print Part List
