SELECT A DIAGRAM
New Model Search:

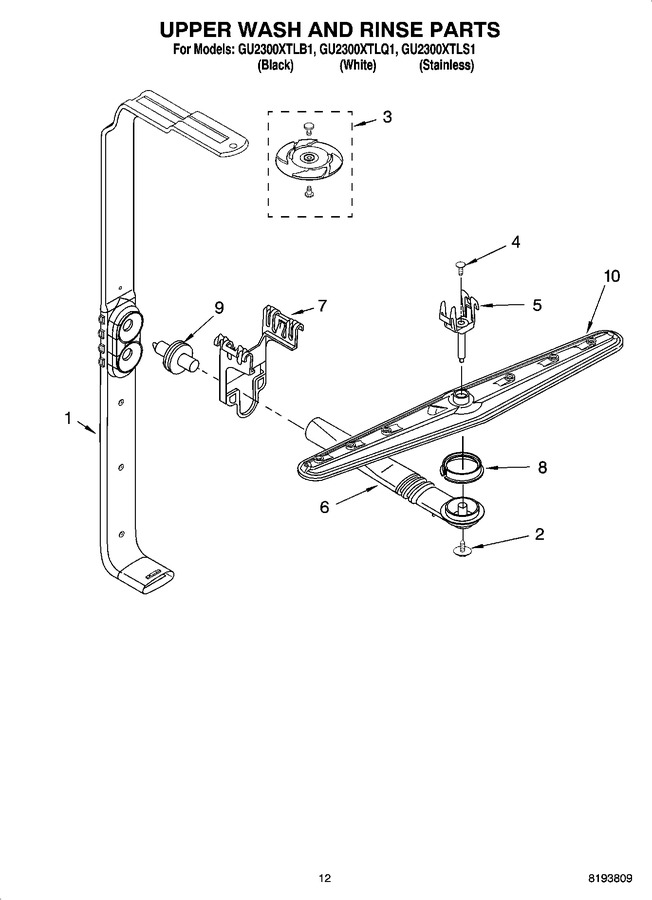

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8539065 | Feed Tube Assembly (also Includes Item 3) |
|
- | |||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 7.99 | |||||
| 3 | 8193768 | Spinner, 3rd Level Wash (Replaces: 8519736) |
|
Immediately | $ 25.12 | ||||
| 4 | WP3400919 | Cover, Screw (Replaces: 3400919) |
|
$ 10.59 | |||||
| 5 | WP8268321 | Mount (Replaces: 8268321) |
|
$ 100.43 | |||||
| 6 | WP8268326 | Manifold (Replaces: 8268326) |
|
$ 113.88 | |||||
| 7 | 8268325 | Hanger |
|
$ 5.84 | |||||
| 8 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.21 | ||||
| 9 | 8269295 | Nozzle, Feed |
|
$ 41.63 | |||||
| 10 | WP8269024 | Sprayarm (Replaces: 8269024) |
|
Immediately | $ 78.23 |
