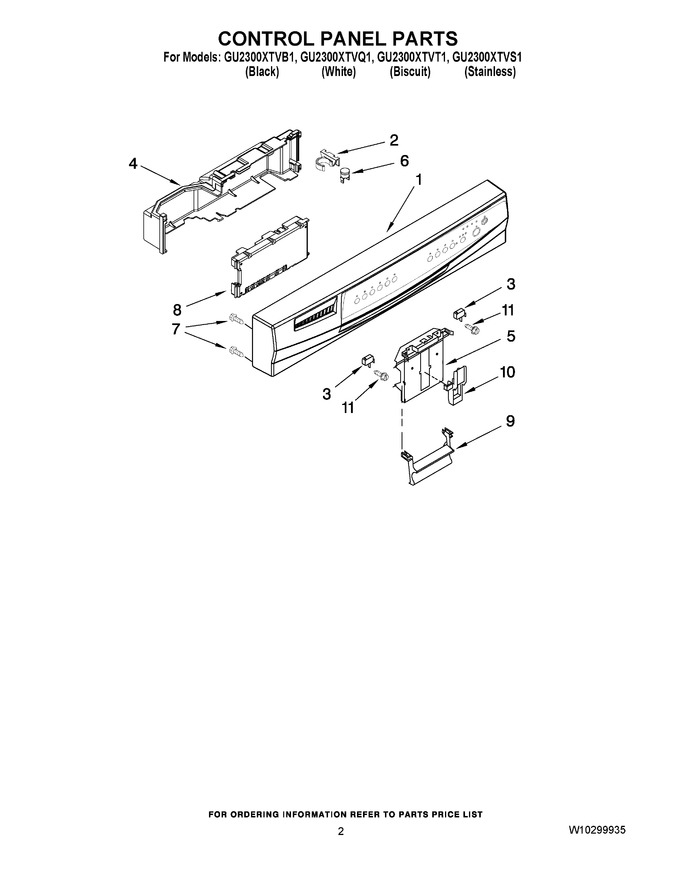

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175292 | Console Asm. Includes Active Overlay & Insert (white) |
|
- | |||||
| 1 | W10175293 | Console Asm. Includes Active Overlay & Insert (biscuit) |
|
- | |||||
| 1 | W10175291 | Console Asm. Includes Active Overlay & Insert (black) |
|
- | |||||
| 2 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 3 | WP8269209 | Switch, Door (Replaces: 8269209) |
|
Immediately | $ 41.24 | ||||
| 4 | W10158350 | Cover Control Shield Assembly |
|
$ 26.50 | |||||
| 5 | 8193882 | Bolt, Latch (Replaces: 8524476) |
|
Immediately | $ 109.02 | ||||
| 6 | W10258275 | Bi-metal (Replaces: 661663) |
|
Immediately | $ 41.71 | ||||
| 7 | WPW10348413 | Screw (Replaces: 3400815) |
|
Immediately | $ 8.03 | ||||
| 8 | WPW10285179 | Control, Electronic (Replaces: W10130968) |
|
Immediately | $ 301.60 | ||||
| 9 | WP8534985 | Handle (white) (Replaces: 8534985) |
|
$ 121.08 | |||||
| 9 | WP8534984 | Handle (black) (Replaces: 8534984) |
|
$ 124.82 | |||||
| 9 | 8534986 | Handle (biscuit) |
|
$ 85.46 | |||||
| 10 | WP8524471 | Actuator, Latch (Replaces: 8524471) |
|
Immediately | $ 96.46 | ||||
| 11 | WP3400412 | Screw (Replaces: 3400412) |
|
Immediately | $ 7.56 |
