Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8575899 Guide, Use & Care Appelez-nous -
1 W10082651 Tech Sheet Appelez-nous -
1 8575348 Instructions, Installation Appelez-nous -
1 W10102784 Energy Guide Appelez-nous -
2 W11613572 Arm, Hinge (right)   (Replaces: 8534857) In-Stock Immediately $ 78.37

2 W11806566 Arm, Hinge (left)   (Replaces: 8534858) In-Stock Immediately $ 66.52

3 8268983 Stiffener, Door Special Order $ 38.77

4 W10384707 Panel Front (biscuit)   (Replaces: W10073220) Special Order $ 312.47

4 W10301577 Panel Front (stainless)   (Replaces: W10137625) Special Order $ 365.45

4 W10073210 Panel Front (white) Appelez-nous -
4 W10301571 Panel Front (black)   (Replaces: W10073200) Special Order $ 357.77

5 W11763739 Access Panel (includes Item 7) (white)   (Replaces: 8558261) Special Order $ 38.79

5 W10871198 Access Panel (includes Item 7) (biscuit)   (Replaces: 8558262) Special Order $ 147.59

5 W11763736 Access Panel (includes Item 7) (black)   (Replaces: 8558260) In-Stock Immediately $ 38.79

6 WPW10073520 Insulation, Door   (Replaces: 8268580) Special Order $ 91.65

7 W10831329 Insulation, Access Panel   (Replaces: W10073540) In-Stock Immediately $ 40.71

8 8558254 Toe Panel (includes Items 10 & 11) (biscuit) Appelez-nous -
8 WPW10586591 Toe Panel (includes Items 10 & 11) (white)   (Replaces: 8558253) Special Order $ 309.39

8 W10871196 Toe Panel (includes Items 10 & 11) (black)   (Replaces: 8558252) Special Order $ 165.75

9 8269740 Clip, Grounding Special Order $ 6.21

10 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 10.68

11 W10831329 Insulation, Toe Panel   (Replaces: W10073550) In-Stock Immediately $ 40.71

12 3400865 Screw (biscuit) Special Order $ 14.07

12 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 7.53

12 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 7.75

13 WP681414 Screw,   (Replaces: 343641) In-Stock Immediately $ 7.85

14 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.00


    View Diagram in Separate Window     Print Icon   Print Part List

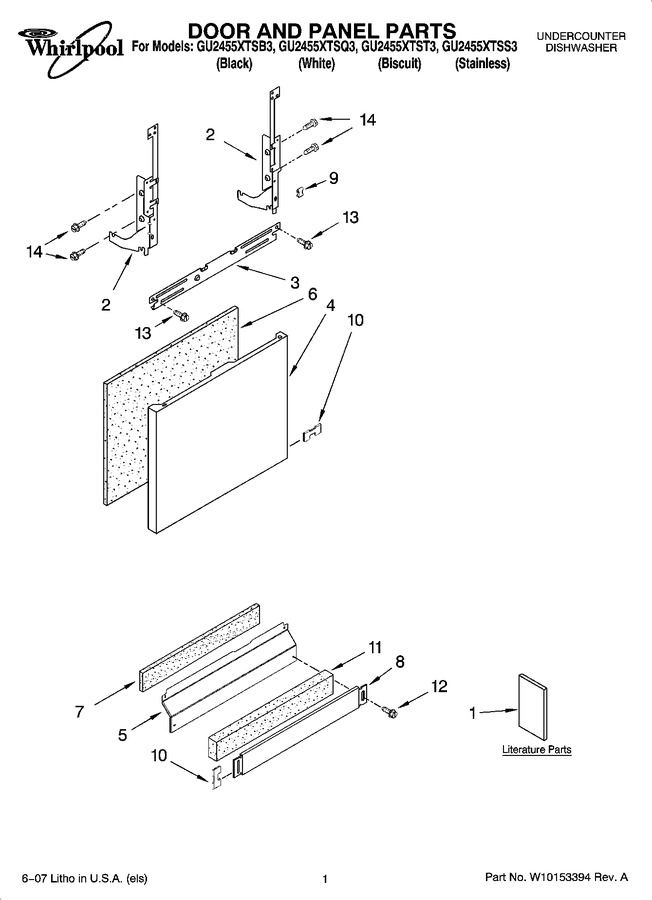

Diagram for GU2455XTSQ3
