SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

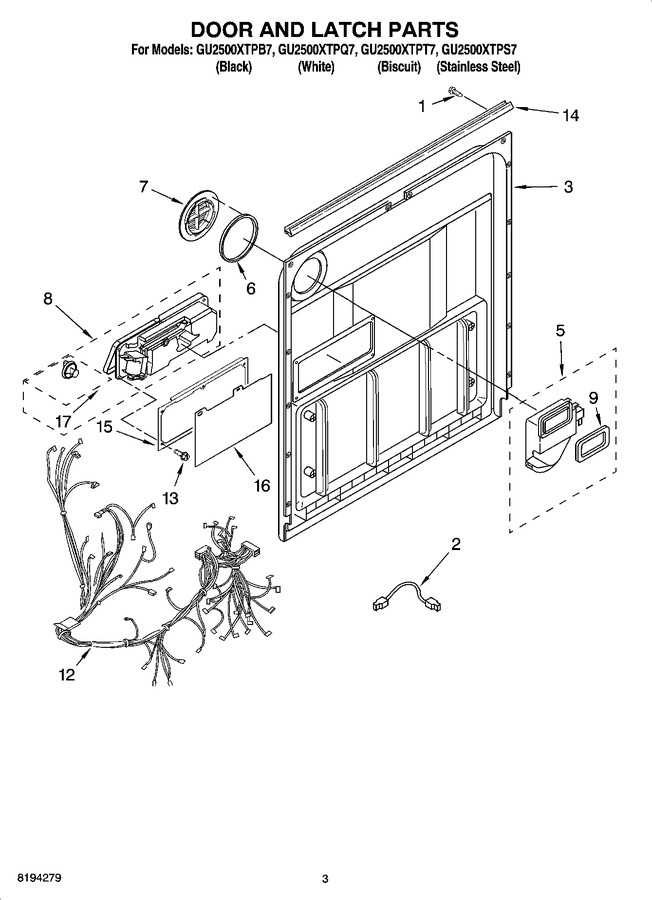

1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 8.20
2	8545608		Harness, Vent Motor				$ 152.37
3	WP8269311		Inner Door (also Order Item 6)   (Replaces: 8269311)				$ 299.59
5	WPW10164259		Vent Assembly (also Order Item 6)   (Replaces: 8572583)				$ 208.90
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WP8558991		Deflector, Vent (also Order Item 6)   (Replaces: 8545535)				$ 19.64
8	WPW10224428		Dispenser, Assembly   (Replaces: 8565816)			Immediately	$ 84.06
9	WP8269258		Seal. Front   (Replaces: 8269258)			Immediately	$ 96.86
12	8573175		Wiring Harness Main		Appelez-nous	-
13	WPW10177098		Screw (6)   (Replaces: 8281154)			Immediately	$ 8.02
14	WP8269296		Seal, Console/door   (Replaces: 8269296)			Immediately	$ 188.17
15	WPW10462232		Bracket, Dispenser   (Replaces: 8535637)				$ 37.79
16	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 113.15
17	WP8558307		Knob, Dispenser   (Replaces: 8558307)			Immediately	$ 21.27

    View Diagram in Separate Window       Print Part List
