SELECT A DIAGRAM

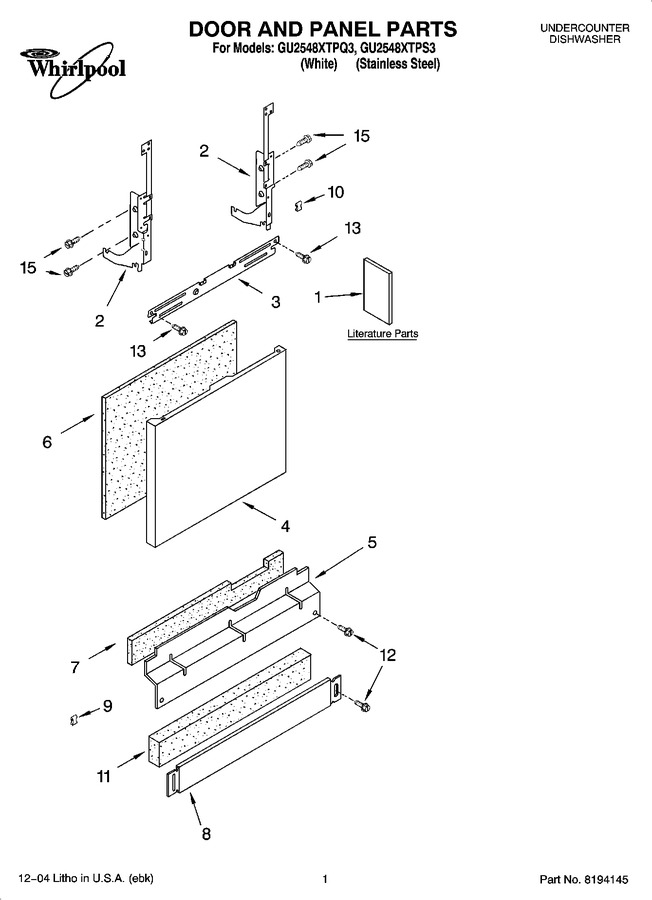

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535541		Guide, Use & Care Tech Sheet		Appelez-nous	-
1	8535451		English/french		Appelez-nous	-
1	8535437		Instructions, Installation		Appelez-nous	-
1	8535643		Energy Guide		Appelez-nous	-
2	W11806566		Arm, Hinge (left)   (Replaces: 8534858)			Immediately	$ 71.77
2	W11613572		Arm, Hinge (right)   (Replaces: 8534857)			Immediately	$ 83.93
3	8268983		Stiffener, Door				$ 38.77
4	W10301577		Panel Front (stainless)   (Replaces: 8269845)				$ 399.50
4	8269842		Panel Front (white)		Appelez-nous	-
5	W11763736		Access Panel (includes Item 7) (black)   (Replaces: 8543838)			Immediately	$ 42.25
5	W11763739		Access Panel (includes Item 7) (white)   (Replaces: 8543839)				$ 42.65
6	WPW10073520		Insulation, Door   (Replaces: 8268580)				$ 96.23
7	W10831329		Insulation, Access Panel   (Replaces: 8268584)			Immediately	$ 43.30
8	WPW10586591		Toe Panel (includes Item 11) (white)   (Replaces: 8270027)				$ 309.39
8	W10871196		Toe Panel (includes Item 11) (black)   (Replaces: 8270026)				$ 174.04
9	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
10	8269740		Clip, Grounding				$ 6.21
11	W10831329		Insulation Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
15	3369181		Screw		Appelez-nous	-
