SELECT A DIAGRAM

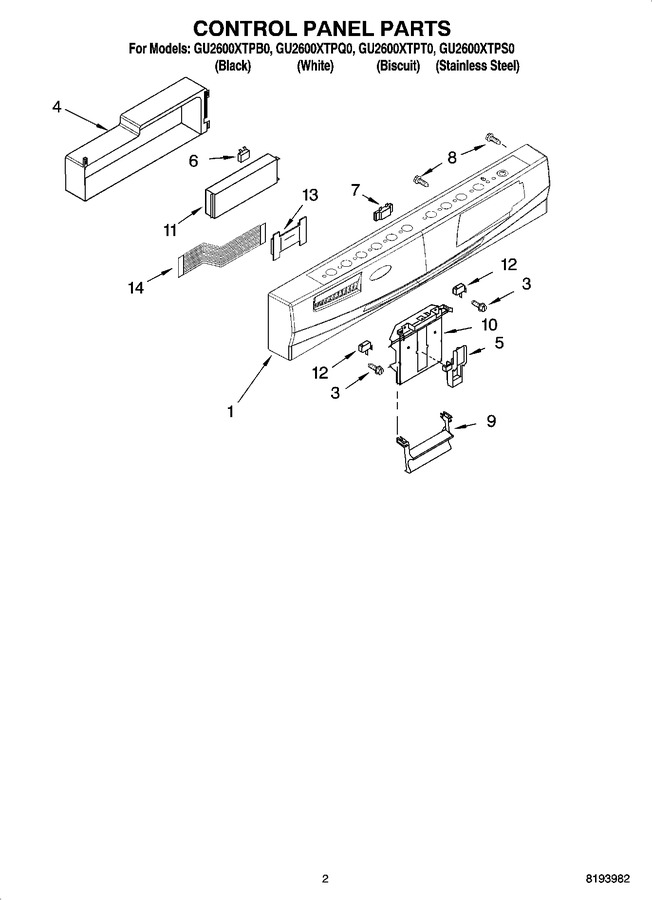

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535350		Console Asm. Includes Active Overlay & Insert (black)		Appelez-nous	-
1	8535351		Console Asm. Includes Active Overlay & Insert (white)		Appelez-nous	-
1	8535352		Console Asm. Includes Active Overlay & Insert (biscuit)		Appelez-nous	-
3	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.56
4	8283512		Cover Control Shield Assembly		Appelez-nous	-
5	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 96.46
6	8193762		Fuse, Thermal Electronic   (Replaces: 8269213)			Immediately	$ 40.88
7	WP8269206		Display, Dual Digit   (Replaces: 8269206)				$ 128.71
8	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 7.76
9	8534986		Handle, Latch (biscuit)				$ 85.46
9	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 121.08
9	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 124.82
10	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 109.02
11	8546558		Control, Electronic		Appelez-nous	-
12	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 41.24
13	8283453		Interconnect		Appelez-nous	-
14	8535412		Tail, Active Overlay		Appelez-nous	-
