SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts

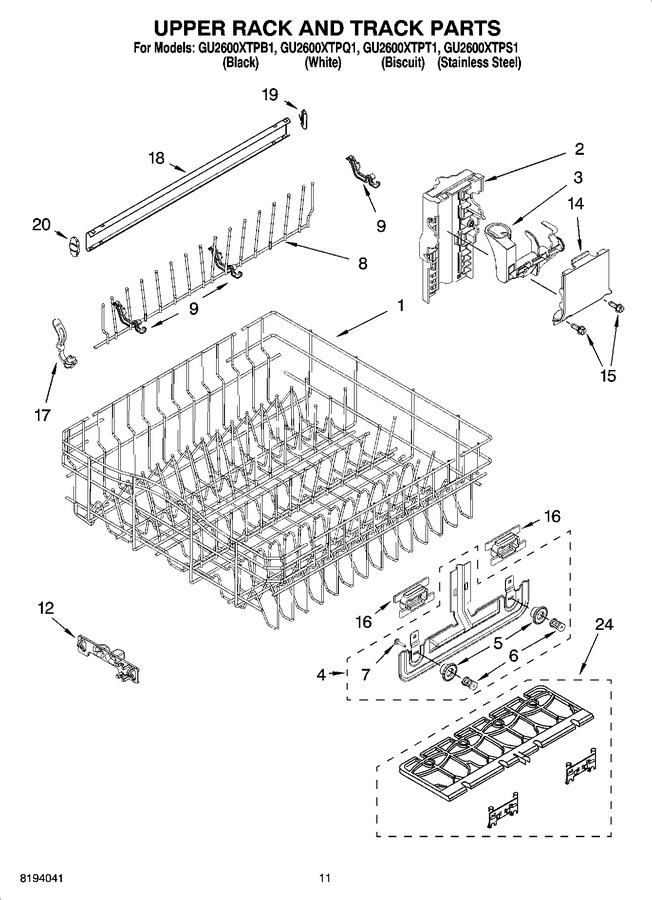

09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11842830		Dishrack, Upper Assembly   (Replaces: 8539242)			Immediately	$ 171.03
2	8531343		Housing, Adjuster		Appelez-nous	-
3	8539122		Actuator, Adjuster (right Hand)				$ 48.69
3	8539121		Actuator, Adjuster (left Hand)				$ 47.04
4	W10728849		Adjuster Assembly   (Replaces: 8268654)				$ 174.59
5	WP3385088		Wheel   (Replaces: 3385088)			Immediately	$ 11.81
6	WP8268703		Axel, Adjuster   (Replaces: 8268703)			Immediately	$ 10.74
7	8281156		Screw				$ 5.83
8	W10727426		Tine Row   (Replaces: 9744565)			Immediately	$ 80.62
9	WP8539189		Clip, Pivot   (Replaces: 8539189)				$ 7.74
12	WP8539119		Positioner, Dual   (Replaces: 8539119)				$ 104.60
14	8531345		Cover, Adjuster		Appelez-nous	-
15	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
16	8268704		Positioner, Arm				$ 36.10
17	WP8539113		Clip, No-flip   (Replaces: 8539113)				$ 10.89
18	WP3385089		Track Rack   (Replaces: 3385089)			Immediately	$ 80.00
19	WP8565925		Stop, Track   (Replaces: 8524581)			Immediately	$ 6.87
20	WP8565925		Stop Track Removeable   (Replaces: 8562015)			Immediately	$ 6.87
24	8539153		Cupshelf, Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
